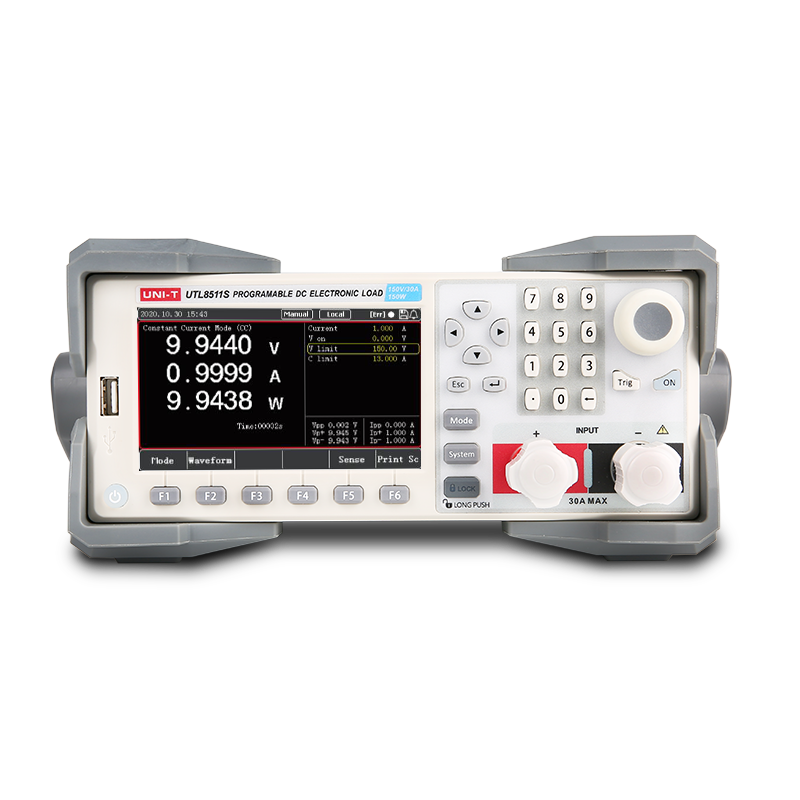

UNI-T UTL8511S 可编程直流电子负载 (0-150V; 0-30A; 150W; Ripple test)

Input ratings(0~40°C):

- Input voltage: 0~150V

- Input current: 0~3A; 0~30A

- Resolution: 0.1mV, 0.1mA

- Input power: 150W

- Min. operating voltage: 1.4V at 30A

CV mode:

- Range: 0~18V, 0~150V

- Accuracy: ±(0 .05%+0 .025%FS)

CC mode:

- Range: 0~3A, 0~30A

- Accuracy: ±(0.05%+0.05%FS)

CR mode:

- Range: 0.05Ω~7.5KΩ

- Accuracy: 0.1%+0.08S

CP mode:

- Range: 150W

- Accuracy: ±(0.1%+0.1%FS)

Dynamic mode (CC mode):

- T1&T2: 50µs~99.999S/Res: 1µs

- Accuracy: 5µs±100ppm

- Rise/fall slope: 0.001 ~3.0A/µs

- Min rise time: ≥10µs

Read back voltage:

- Range: 0~18V, 0~150V

- Accuracy: ±(0.025%+0.025%FS)

Read back current:

- Range: 0~3A, 0~30A

- Accuracy: 0.025%+0.05%FS

Readback power:

- Range: 150W

- Accuracy: ±(0.1%+0.1%FS)

Ripple wave measurement:

- Range: 0-0.3V, 0-9V

- Accuracy: 0.1%+2mV, 0.1%+10mV

Short circuit:

- Current (CC): ≤3A, ≤30A

- Voltage (CV): 0V

- Resistance (CR): 35mΩ

Input resistance: 300KΩ

Power: 110V/220V; 50/60Hz

Display: LCD

Weight: 5.3kg

Size: 214mm x 88mm x 340mm

Standard accessories:

- Power cord conforming to the standard of the destination country

- 240V, 0.25A fuse x2 (only for 110V input voltage)

Optional accessories:

- Power cable 3C
