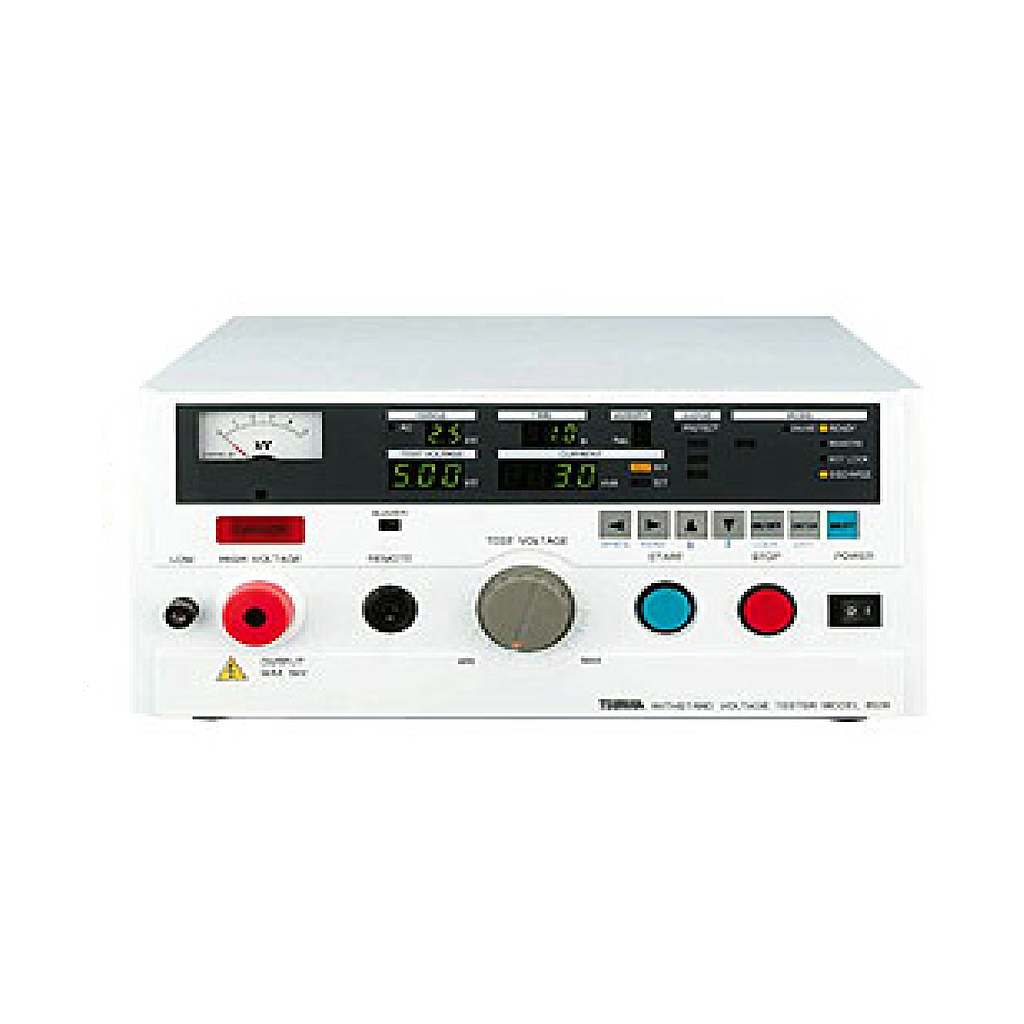

TSURUGA 8528-P 耐电压试验器 (AC 5kV)

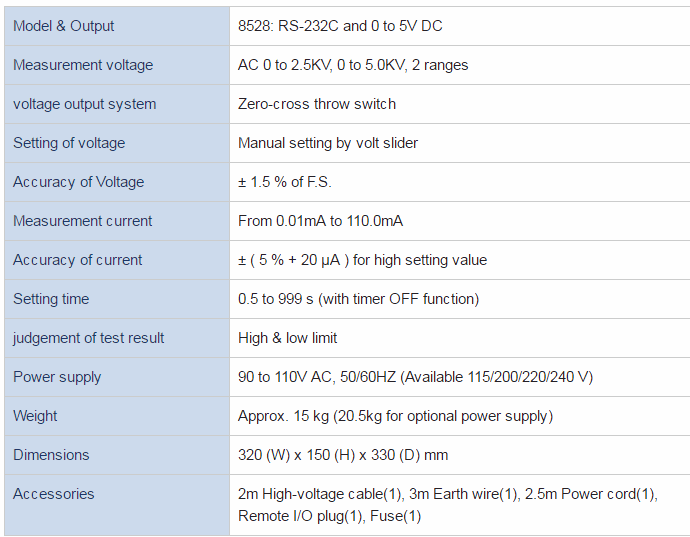

Model & Output    8528: RS-232C and 0 to 5V DC
Measurement voltage    AC 0 to 2.5KV, 0 to 5.0KV, 2 ranges
voltage output system    Zero-cross throw switch
Setting of voltage    Manual setting by volt slider
Accuracy of Voltage    ± 1.5 % of F.S.
Measurement current    From 0.01mA to 110.0mA
Accuracy of current    ± ( 5 % + 20 μA ) for high setting value
Setting time    0.5 to 999 s (with timer OFF function)
judgement of test result    High & low limit
Power supply    90 to 110V AC, 50/60HZ (Available 115/200/220/240 V model 8528-P)
Weight    Approx. 15 kg (20.5kg for optional power supply)
Dimensions    320 (W) x 150 (H) x 330 (D) mm
Accessories    2m High-voltage cable(1), 3m Earth wire(1), 2.5m Power cord(1),
Remote I/O plug(1), Fuse(1)
