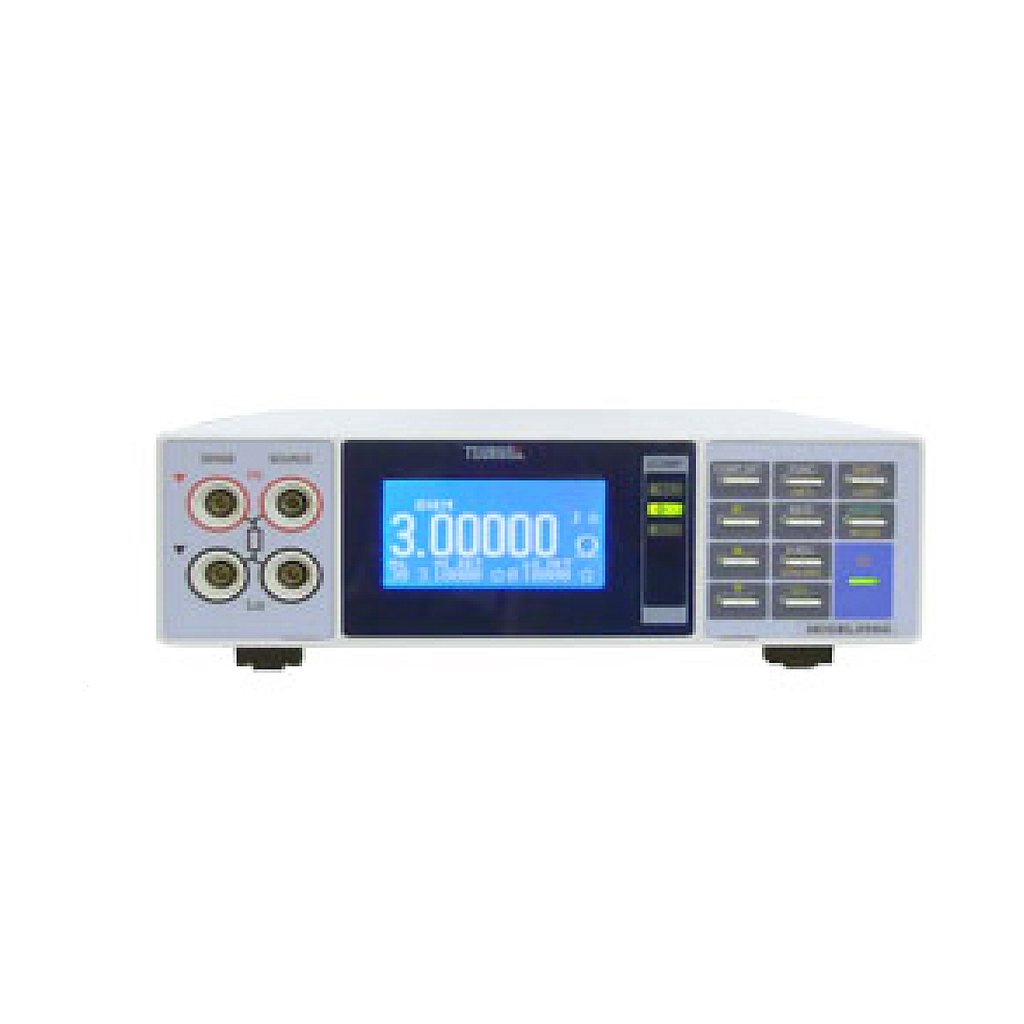

TSURUGA 356G 直流电阻计 (1A,300Ω)

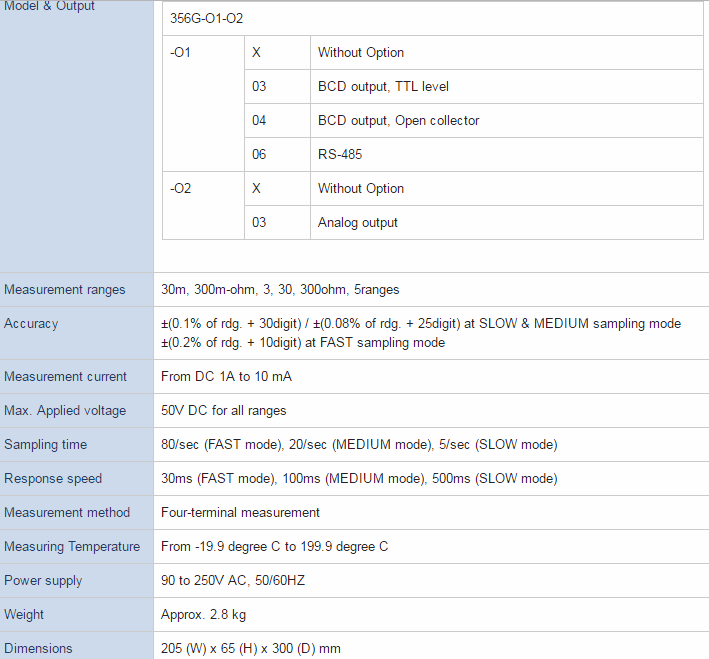

Model & Output
356G-O1-O2
-O1    X    Without Option
03    BCD output, TTL level
04    BCD output, Open collector
06    RS-485
-O2    X    Without Option
03    Analog output

Measurement ranges    30m, 300m-ohm, 3, 30, 300ohm, 5ranges
Accuracy    ±(0.1% of rdg. + 30digit) / ±(0.08% of rdg. + 25digit) at SLOW & MEDIUM sampling mode
±(0.2% of rdg. + 10digit) at FAST sampling mode
Measurement current    From DC 1A to 10 mA
Max. Applied voltage    50V DC for all ranges
Sampling time    80/sec (FAST mode), 20/sec (MEDIUM mode), 5/sec (SLOW mode)
Response speed    30ms (FAST mode), 100ms (MEDIUM mode), 500ms (SLOW mode)
Measurement method    Four-terminal measurement
Measuring Temperature    From -19.9 degree C to 199.9 degree C
Power supply    90 to 250V AC, 50/60HZ
Weight    Approx. 2.8 kg
Dimensions    205 (W) x 65 (H) x 300 (D) mm
Accessories    Power fuse(1), Power cord(1), Input connector (1)
