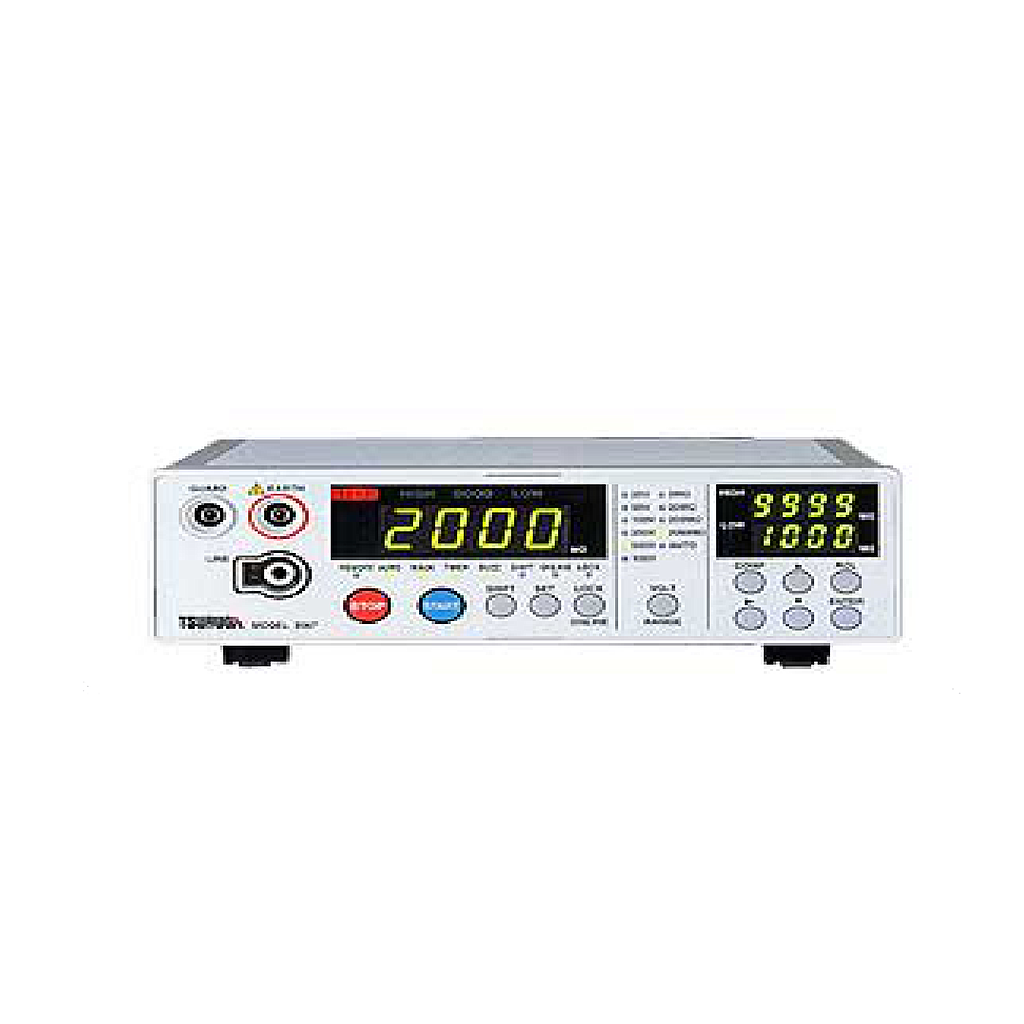

TSURUGA 3567A 绝缘电阻计 (1000V, 9999MΩ)

Model & Output    3567A-X  -O: No data output
3567A-03-O: BCD output, TTL level
3567A-04-O: BCD output, Open collector
3567A-05-O: RS-232C
3567A-06-O: RS-485
※) -O: Judgement output
TN: Open collector NPN
RY: Relay output
Test voltage    25/50/100/250/500/1000V DC
Rated measurement current    1 mA
Judgment system    High & low limit with digital comparator
Adjustable range    High & low limit 0~9999M-Ohm
Judgment condition    High limit value > Display value > Low limit value : Good
High limit value≦Display value, Low limit≧Display value : NG
Test time    0.2 - 99sec.
Mask time:    0.1 - 99sec. , Off
Sampling    20 times/sec.
Response (Indication)    approx. 0.2 sec. (fixed range)
approx. 0.4 sec. (auto. range)
Power supply    100 to 240V AC, 50/60HZ
Weight    Approx. 1 kg
Dimensions    206 (W) x 65 (H) x 200 (D) mm
Accessories    Power fuse(1), Power cord(1)
