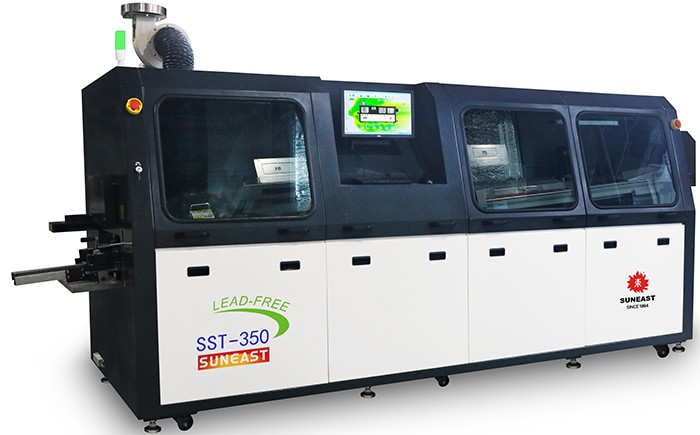

Suneast SST-350 无铅波峰焊接机

Dimension：LxWxH(mm) 4350×1422×1750

Weigh: Approx.1600kg

Power Supply: 3PH  380V  50HZ

Startup Power: 33KW

Operation Power Consumption: 8KW

Control System: PC+PLC

Spraying movement: Step motor

Spray Pressure: 0.2Mpa~0.4Mpa

Flux Flow Arrange: option

Auto Fill Flux: Standards

Exhaust: Top exhaust

Exhaust Ducting Diameter(mm): Φ250

Exhaust fan power: 750W

Preheating Mode: Convection / IR emitter

Control Mode; PID

Preheating Zone Number: 3

Preheating Length(mm): 1800

Preheating Temperature: Room temperature~200℃

Warm-upTime(min): Approx.12min (setting：150℃)

PCB Width(mm): 50~350

Convoyor Direction: L→R (Option：R→L)

Conveyor Speed(mm/min): 500~1800

Conveyor Height(mm): 750±20

Available Component Heigh (mm): Top 120, Bottom15

Conveyor Speed Control Mode: Frequency converter closed-loop stepless speed regulation

Fingers:Spring tablet finger /D-40 duckbill finger/double hook finger/heavy double hook finger, choose one.

Conveyor Angle: 4~7°

Type of solder Pot: Motor drive

Solder Pot Material: Casting Iron

Wave Height Adjustment Digital: Control by PC

Cooling Method: Forced air cooling, Option: water cooler

Heater Power: 13.5KW

Solder Pot Temperature: 300°℃

Solder Pot Capacity: Approx.480KG

Wave Drive Power: 180W*2  3PH   220VAC

Solder Pot Warm-up Time: Approx.150min(setting：250℃)

Temperature Control Mode: PID

Finger Cleaning System: Brush
