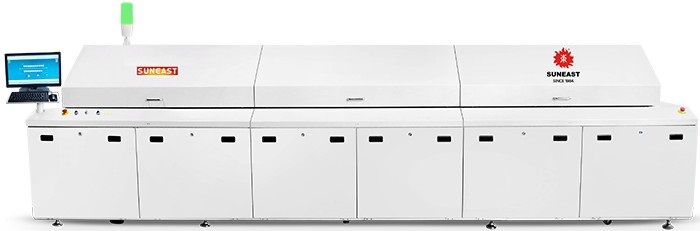

Suneast SER-710AH 水冷回流炉 (Dual rail, 10 heating zones, 20 heating modules)
制造商: Suneast Model: SER-710AH P/N: Dual rail - 报价要求
- 报价要求
- 联系
- Heating part:
Number Of Heating Zones: 10 heating zones, 20 heating modules
Length of heating zone: 3670mm
Cooling mode: Air cooling (Dual cooling zone) (Optional:three cooling zones)
The diameter of the inlet and outlet exhaust pipe: 2-Φ145, the exhaust air volume is required to be 15m³/min x2.
- Transmission system
PCB width: min 50mm - max 400mm
Transport direction: L-R or R-L
Transport height: 900±20mm
Fixed Track: Front Track Fixed (Option: Rear Track Fixed)
Transmission mode: Chain+Mesh Belt
Top/Bottom component clearance: Top 30mm and Bottom 20mm
Conveyor speed: 300mm-1500mm/min
- Control system:
Power Supply: AC3Φ，5W,380V,50/60HZ
Total power: 71KW
Startup power: 35KW
Normal operating power: 9.5KW
Operating temperature range: Room temperature to 320℃
Control mode: PC+PLC control system
Width adjustment mode of track: Electric+manual
Temperature control accuracy: ±1℃
PCB temperature deviation: ±1℃
Setting parameter storage: Various setting parameters can be stored.
Power failure protection: UPS delayed shutdown
Operating interface: Windows Chinese simplified, English online free switching
- Pecifications Parameters
Dimension(L*W*H): Dual rail: 5775*1658*1515
Weight: 2400-2600kg
Color Bright wrinkled white
