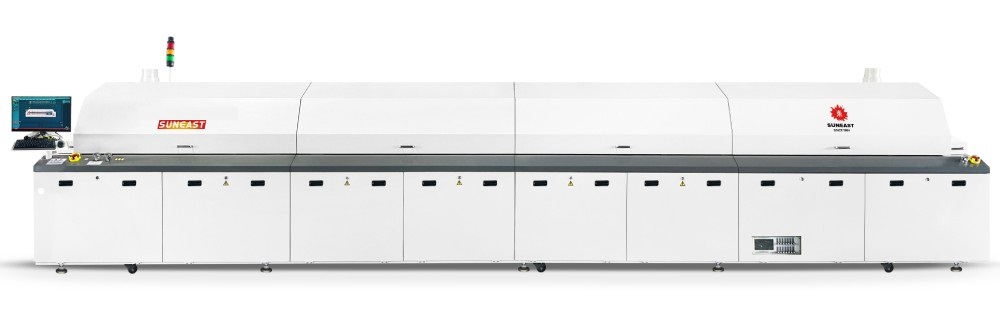

Suneast MINI-12DN 高端热风回流炉 (12 heating zones, 24 heating modules)

- Heating system:

Number Of Heating Zones: 12 heating zones, 24 heating modules

Length of heating zone:      4390mm

Heating up time:   25min

The diameter of the inlet and outlet exhaust pipe:        2-Φ145,  Exhaust demand 10m³/min x2.

- Cooling system:

Cooling type:        Three cooling zones: forced water cooling

Cooling zone length:        1250mm

Chiller power:        5P Water chiller

- Conveyor system

Conveyor Type:             Chain+ mesh belt synchronous transmission

Conveyer Direction: L→R,R→L

Converyer Height:        900±20mm

Component Height:  Clearance above 30mm,Clearance below 20mm

Conveyor Speed:        300mm-2000mm/min

Guide rail structure:         Dust free special hardened guide rail

PCB Width:     min 50mm - max 250mm (Dual tracks); min 50mm - max 450mm (Single track)

Fixed Rail Mode:     The front and rear guide rails are fixed, and the middle two guide rails can be movable.

- Control system:

Power Supply:        AC3Φ，5W,380V,50/60HZ

Total power: 117KW

Startup power:          42KW

Normal operating power:     13KW

Operating temperature range:        Room temperature to 320℃

Control mode:        PC+PLC control system

Temperature control accuracy: ±1℃

PCB temperature deviation: ±2℃

Setting parameter storage:            Pr℃ess Data and status stotage

Power failure protection:   Equipped with UPS

Operating interface: Windows Chinese simplified, English online free switching

N2 area:        Full nitrogen filling

MES communication protocol:        Standard

Computer:        Commercial computer

- Pecifications Parameters

Dimension(L*W*H):  7120*1710*1650mm

Weight:  3500-3700kg

Flux recovery system:        Standard

Color        Bright wrinkled white
