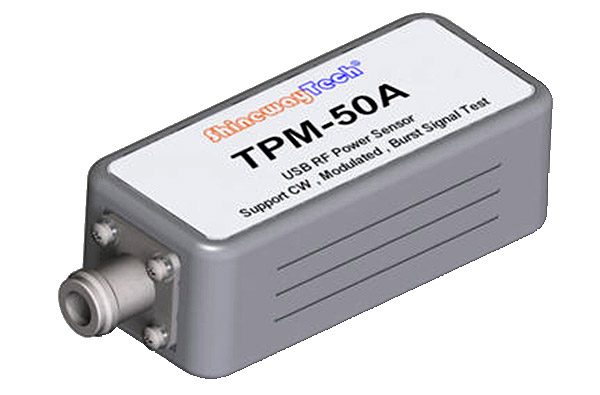

ShinewayTech TPM-50A 终端式数字射频功率计 (50-4000MHz, -40 ~ 20dBm)

Frequency Range: 50-4000MHz

Power Range: -40-20dBm

MAX Power: <23dBm

Accuracy: <= +/-0.3db (15~35℃); <= +/-0.5dB( 0~50℃)

VSWR: <1.2

Burst Width: 1us~60ms

Min. Measurement Frequency: 15Hz

video bandwidth: 5MHz

Minimum Pulse Width: 200ns

Time Resolution: 0.1us,1us,15us,150us

Peak Average Ratio: <12dB

CCDF Range: 0.1% ~ 100%

CCDF Accuracy: ±3%

Burst Signal Duty Ratio: 0.1% ~ 100%

General Specifications:

Power Supply: USB

Operating Temperature: 0℃ ~ 50℃

Storage Temperature: -20℃ ~ 70℃

Relative Humidity: 0 to 85% (Non-condensing)

Weight: 0.3kg

Dimensions (H×W×T): 105（125）*45*35  mm

* Specifications subject to change without notice

Ordering Information

Standard Package:

TPM sensor, USB cable, Software CD, Soft carry bag, Warranty card, CE certificate, Certificate of calibration, User’s manual.
