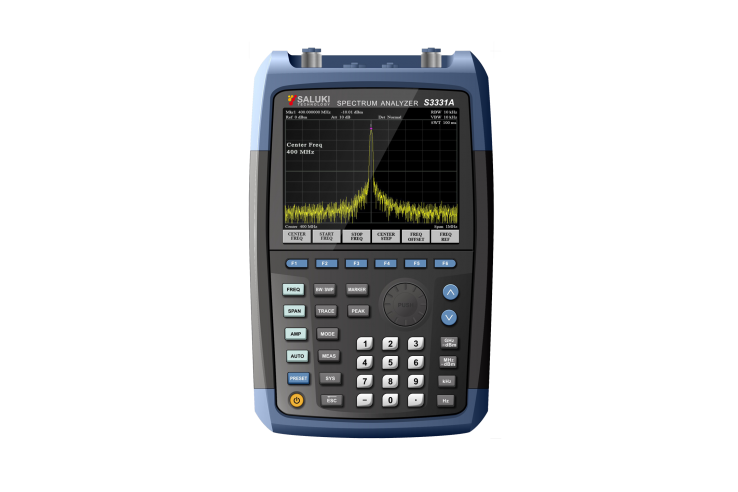

SALUKI S3331A 手持式频谱分析仪 (9 kHz ~ 3.6 GHz)

Frequency Range: 9 kHz to 3.6 GHz

Tuning Resolution: 1 Hz

RBW Range: 1 Hz – 50 kHz, 1 MHz, 3 MHz

VBW Range: 10 Hz – 3 MHz

SSB Phase Noise:

     ≤-90 dBc/Hz @ 30kHz offset

     ≤-100 dBc/Hz @ 100kHz offset

     ≤-110 dBc Hz @ 1MHz offset

Input Attenuator Range: 0dB – 39dB, steps of 3dB

Max. Safe Input Level (CW input): +27dBm

TOI (>30MHz): +13 dBm

SHI (>10MHz）: +30 dBm

Test Port: Type-N female (50Ω)

Communication Port: USB 2.0, LAN

Reference Input/ Output

     10MHz: Input level 0dBm to +10dBm,

     BNC female: Output level 0dBm±2dB

Trigger Input Port: BNC female

Display: 6.5 inch TFT LCD (resolution 600*480)

Dimension: 288 (H) × 182 (W) × 142 (D)mm

Weight: 2.8 kg (including battery)

Battery Life: 4 hours (typ.)
