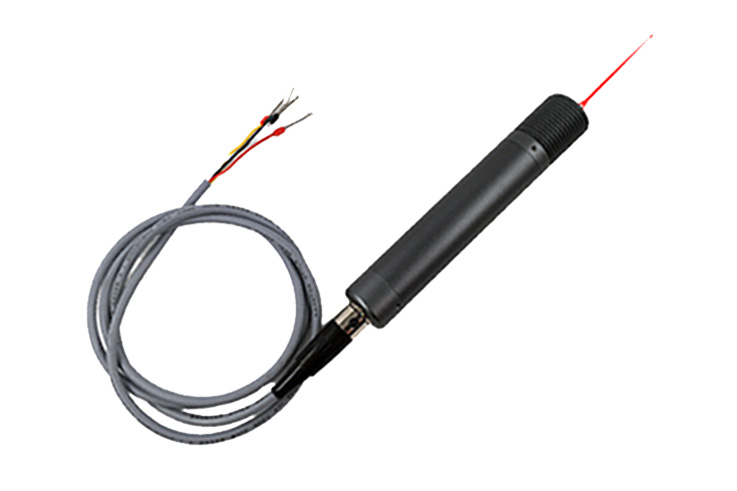

SALUKI S2360V1 红外温度传感器 (-70 ~ 280°C, or 0 ~ 1800°C)

Measurement range: -70 to 280°C, or 0 to 1800°C

Resolution: 0.02°C

Accuracy: ± 0.2°C

Output Signal: RS485 / 4-20mA / 0-5V / 0-10V / 1-wire Bus

Object Distance Ratio: 11.6 : 1

Perspective: 5°

Emissivity: 0 – 1 adjustable (1 default)

Infrared Band: 5.5 – 14 μm

Data Response Time: < 200ms

Operation Voltage

   RS485 output: DC24V supply

   4-20mA output: DC12V supply

Operation Current: < 15mA

Operation Environment: -40°C~ +70°C, 0–90% RH (non-condensing)

Dimension: 112 × 19.5 mm

Weight: 65g
