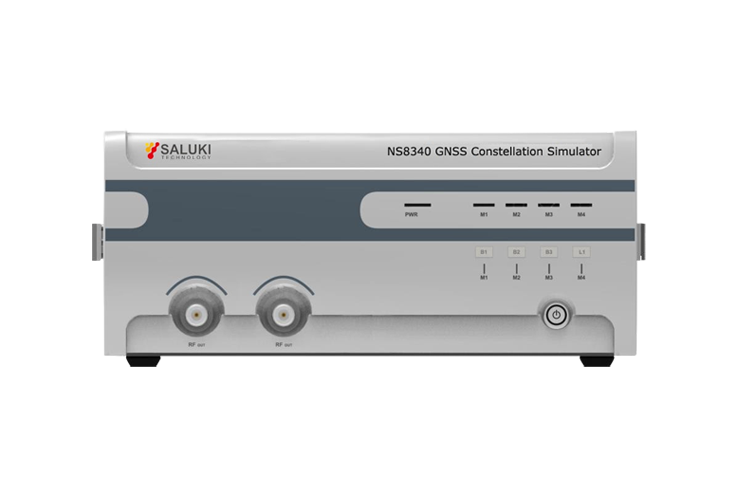

SALUKI NS8340 GNSS星座模拟器

Output Frequency

   BeiDou: B1:1561.098MHz, B2:1207.14MHz, B3:1268.52MHz

   GPS: L1:1575.42MHz, L2:1227.60MHz, L5:1176.45MHz

   GLONASS: L1:1602.00MHz, L2:1246.00MHz

   Galileo: E1:1575.42MHz, E5a:1176.45MHz, E5b:1207.14MHz

   RDSS: L: 1618.25MHz, S: 2491.75MHz

Signal Scale

   Channel number: 12/16 per frequency (optional)

   Multipath number: 4/24 per frequency (optional)

Signal Quality

   Spurious (max.): -40dBc

   Harmonics (max.): -35dBc

   Frequency stability: ≤5×10^-11/sec, ≤±5×10-10/day

Signal Dynamic Performance

   Relative velocity: 0 – 16,000m/s

   Relative acceleration: 0 – 900m/s²

   Relative jerk: 0 – 900m/s³

Phase Noise

   -75dBc/Hz @100Hz

   -80dBc/Hz @1kHz

   -85dBc/Hz @10kHz

   -90dBc/Hz @100kHz

Signal Control Level

   Resolution: superior to 0.2dB

   Absolute accuracy: superior to 0.2dB

   Power Range: -150dBm to -60dBm

External Interface

   1PPS/10MHz pulse signal input port: one BNC port

   1PPS/10MHz pulse signal output port: one BNC port

   RF output port: one Type-N port

Output Second Pluse Indicator

   Output level: 1LVTTL

   Rising edge stability: 0.1ns

Closed Loop Delay (Optional): Superior to 10ms

Inertial Navigation Simulation (Optional)

   Data output rate: 400Hz/s (max.)

   Output delay: ± 500ms

   Unit signal accuracy: 0.1n mile/h

   Adjustable step: 1μs

Power Supply: AC power 220V±20V, 200W

Dimension: 484.1(W) × 175(H) × 482.6(D)mm
