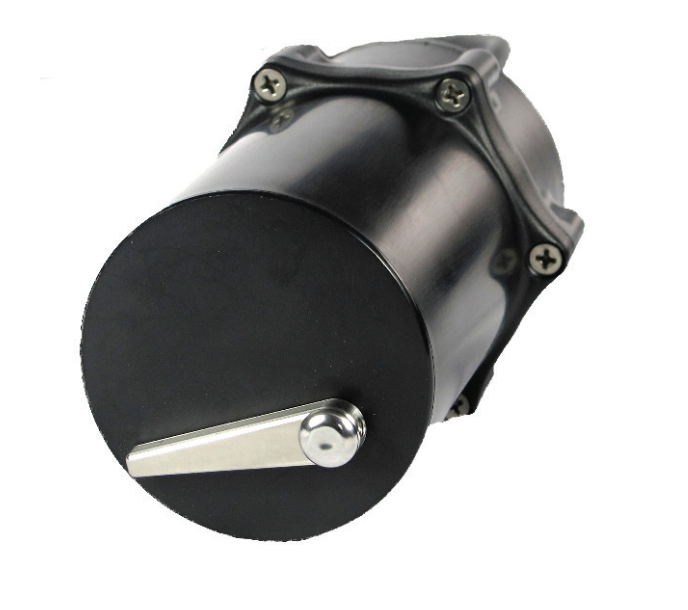

Pulsar measurement VIPER 污泥传感器

Sensor Body Dimensions: 78 mm D x 195 mm H (3.1 in x 7.7 in)

Weight: Nominal 1.5 kg (3.3 lb)

Enclosure Material/Description: Valox 357. Wiper blade — Stainless steel

Transducer Cable Extensions: 4-core screened

Maximum Separation: 200 m (656.2 ft)

Mounting Connection: 1” NPT or BSP

ENVIRONMENTAL

IP Rating: IP68

Max. & Min. Temperature (Electronics): -20 °C to +50 °C (-4 °F to +122 °F)

CE Approval:

2014/30/EU & 2014/35/EU — EMC Directive. Standards applied: EN 61010-1:2010 / EN 61326-

1:2013 / EN 55011 / EN 61000 (3-2 / 3-3 / 4-2 / 4-3 / 4-4 / 4-5 / 4-6 / 4-7 / 4-11

ATEX Approval: Viper transducer must be within a safe area

PERFORMANCE

Accuracy: 0.25% of the measured range or 10 mm (0.4 in), whichever is greater

Resolution: 0.25% of the measured range or 10 mm (0.4 in), whichever is greater

Max Range: 10 m (32.8 ft)

Min Range: 300 mm (11.8 in)

Minimum Sludge Density: 0.5% concentration
