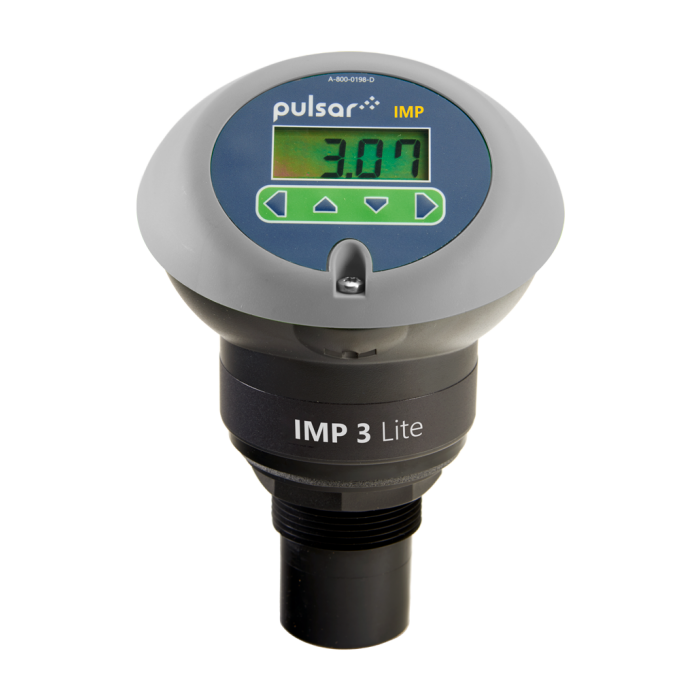

Pulsar measurement IMP LITE 非接触式液位传感器

Dimensions: 186 mm (7.3 in) H x 133 mm (5.2 in) D

Cable entry: 2 x 16 mm (0.6 in) cable glands, 3.5 mm to 10 mm (0.1 in to 0.4 in) cable diameter

Mounting: IMP3 - 3 m (9.8 ft) version: 1.5 in BSP/NPT

IMP 6 - 6 m (19.7 ft) version: 1.5 in BSP/NPT

IMP10 - 10 m (32.8 ft) version: 2 in BSP/NPT

Suits BSP & NPT, parallel and tapered

Weight: Approximately 1kg (2.2 lbs)

Temperature (Process): -40 °C to 80 °C (-40 °F to 176 °F)

Temperature (Ambient): -20 °C to 65 °C (-4 °F to 149 °F)

Input Voltage: 11-30 V, 3.5-22 mA

Accuracy: ±0.25% or 6 mm (0.2 in); whichever is greater

Resolution: ±0.1% or 2 mm (0.1 in); whichever is greater
