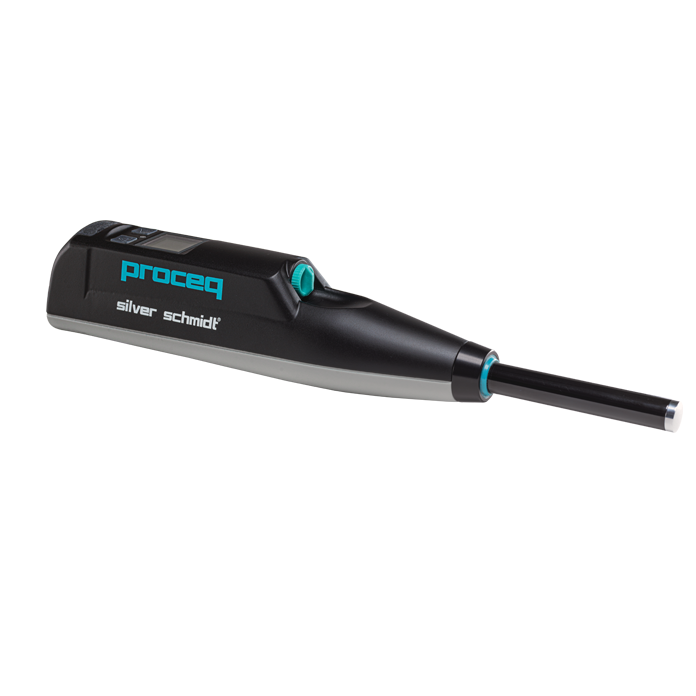

PROCEQ Silver Schmidt OS8200L 混凝土试验锤 (10-100MPa/1450-14500psi; 0.735 Nm)

Applications: High-precision compressive strength estimation and strength uniformity assessment

Measurement ranges:

- Normal and high strength: 10 – 100 MPa/1450 – 14500 psi

- Fresh*: 5 – 30 Mpa/725 – 4351 psi (*with mushroom plunger)

- Technology: Optical Rebound Velocity Quotient

- Impact energy: 0.735 Nm

- Probe weight: 0.84 kg / 1.85 lbs

- Digital display: 100 x 100 px, back-lit

- Display and processing unit: iOS® or Android® device (not included)

- Connectivity: Bluetooth® 4.0 EDR Low Energy to iOS® or Android® device

- Optional accessories:

+ Bluetooth® printer: optional / included in Print model

+ Mushroom plunger (for Type L only)

Measurements settings

- Rebound value calculation: EN12504-2; ASTM C805; JGJ-T23; JSCE; JIS; Mean

- Units: N/mm2, MPa, psi, kg/cm2

- Form factor correction: Cube, 2:1 cylinder, 1:1 core, user-definable

- Carbonation correction: User-definable

- Reference and custom curves:

+ Reference curves for Europe, China and Russia

+ Custom curves (required by major standards)

+ EN13791 characteristic strength determination using rebound value alone

Parameters:

- Memory capacity: ca. 20'000 impacts

- Impacts per series: Max. 70

- Battery: Removable, 1x AAA (alkaline or rechargeable), flight-safe

- Battery autonomy: > 20'000 impacts

- Operating temperature: 0 to 50°C / 32 to 122 °F

- Operating humidity: <95% RH, non-condensing

- Storage temperature: -10 to 70°C / 14 to 158 °F
