PHYWE 06765-00 leXsolar-H2 Ready-to-go 2.0 燃料电池试验设备套

- Function and Applications:

The experiment set provides the complete bandwidth of current fuel cell technology. Solar module, electrolyzer, and fuel cell permit the assembling and examination of a solar-hydrogen cycle. Working principles, efficiency and characteristics curves of electrolyzer and fuel cell are just some of the topics covered. In addition to a PEM fuel cell an ethanol fuel cell is also included so that different technologies can be compared with one another. Hydrogen can also be produced and stored.

- Benefits:

• Ideal for vocational schools, colleges and engineering degree courses

• Connector system for easy and fast assembly

• Learn about different fuel cell types

• Build a fuel cell stack

• All necessary equipment already included

• Can be used everywhere since all componentes are provided in a transport case

- Equipment and Technical Data:

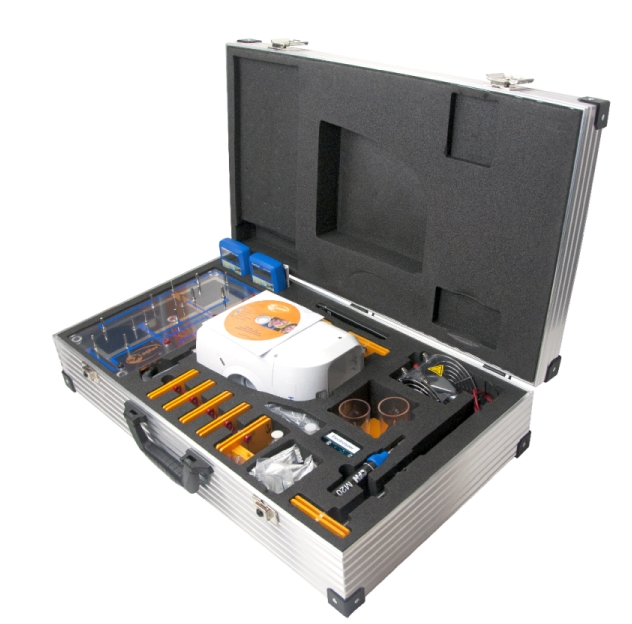

• In the transport case (dimensions: 64 x 37 x 17 cm) all items to perform the following experiments are provided so that no additional accessories are needed:

• Set up of an electrolyzer and the different fuel cells

• Properties of an electrolyzer, a PEM fuel cell and an ethanol fuel cell

• Characteristic curve of an electrolyzer, a PEM fuel cell and an ethanol fuel cell

• Hydrogen production and storage

• Faraday and energy efficiency of the electrolyzer and of the PEM-fuel cell

• Parallel- and series connection of PEM-fuel cells

- The set includes:

• Solar module and modules with potentiometer and motor

• Modules to produce and store hydrogen

• Electrolyser, PEM fuel cell and ethanol fuel cell

• Digital multimeter

• Lamp with table clamp

- Additional accessories:

• Download key for detailed student and teacher guides
