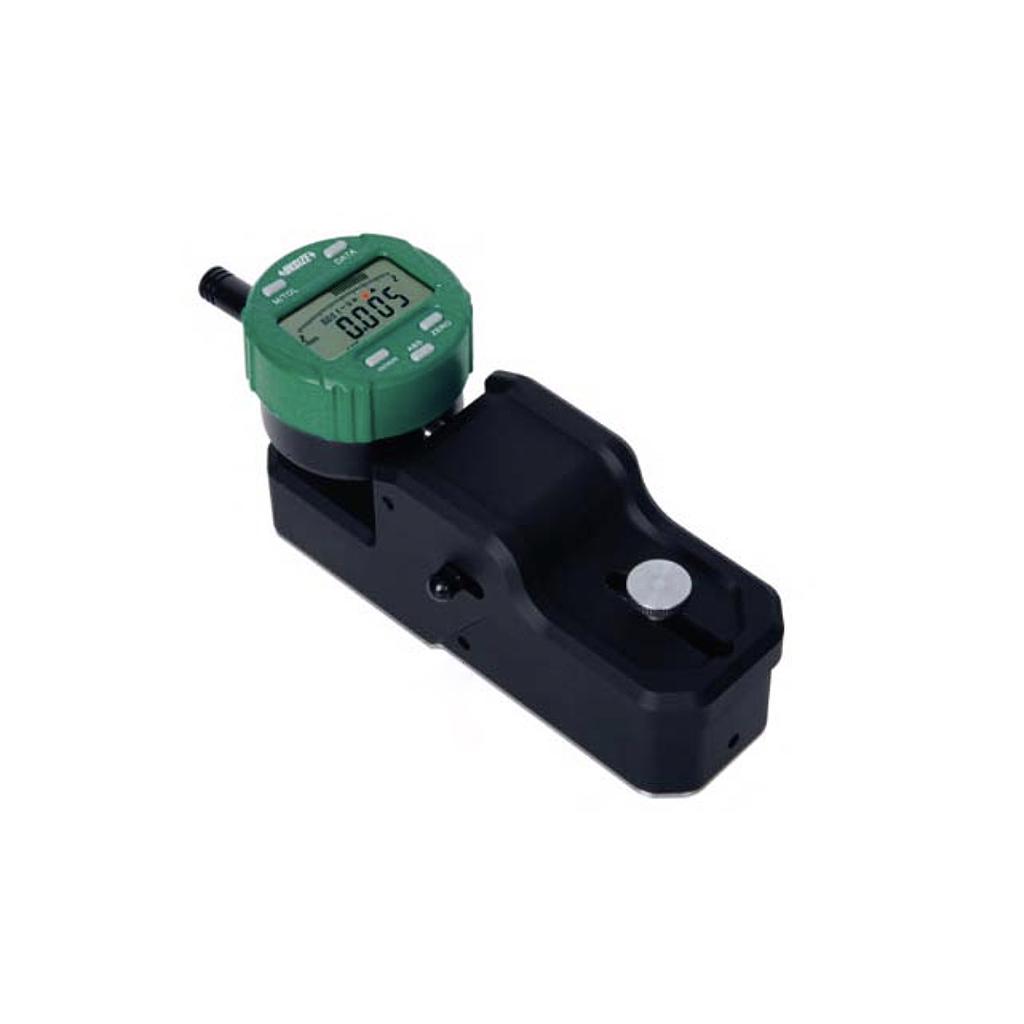

INSIZE 2932-451 Digital Internal Measuring Gages (20-45mm/0.8-1.8")

Measuring range (L): 20-45mm/0.8-1.8"

Resolution: 0.001mm/0.00005"

Accuracy: 5µm

Repeatability: 1µm

Movable point stroke: 5mm/0.02"

Point height is adjustable, h=2-25mm

CR2032 battery, automatic power off (time is adjustable)

Data output


With transmission button and signal light

Reading in digital and analog

Display can be rotated by 320°

Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement, max./min./TIR measurement, tolerance Go and No-Go display

Data output cable (optional): 7315-51 (need receiver), 7302-40M
