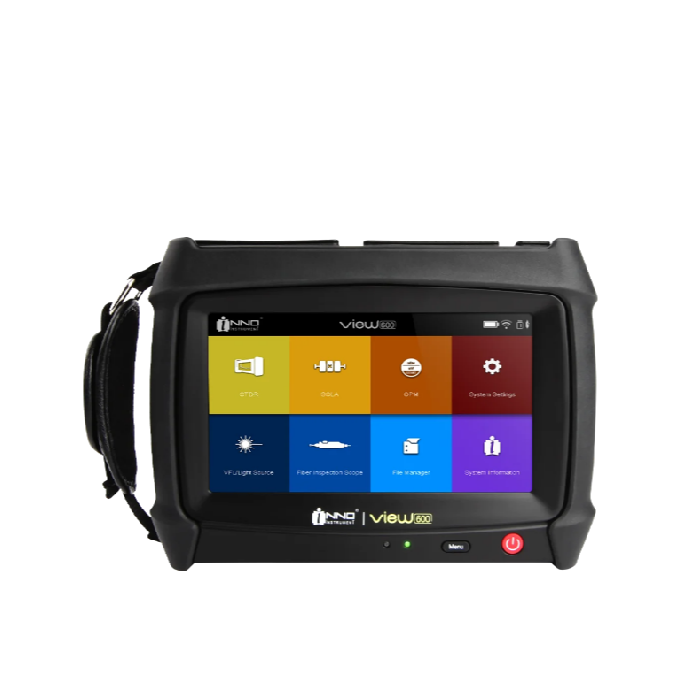

INNO VIEW600 熔合拼接器

Display: 7 inches, High Brightness TFT LCD, resolution of 800×480

Distance unit: m / km / mile / ft

Range settings (km): 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km

Range settings (mile): 0.81, 1.55, 3.11, 6.22, 12.4, 24.8, 49.6, 74.6, 99.4, 223.7mile

Pulse widthL: 3ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs

Distance accuracy: ±(1m+Distance×2.5×10-5 +Sampling resolution)

Linearity: 0.03dB

Resolution: 0.04m ~ 10.24m

Loss readout resolution: 0.001dB

Battery capacity: Operating Time : Up to 12hours

File format: SOR, BMP, JPG, GDM, SOLA, PDF

External connection: USB 2.0 x 2

Compatible connector: APC(FC, SC, LC), UPC(FC, SC, LC, ST)

Power supply: AC Input 100-240V, 50-60Hz / DC Input 19V, 3.42A

VFL port: 2.5mm ferrule type

VFL wavelength: 650nm ±10nm

VFL distance: Up to 10km

VFL output power: 20mW

Light source: Operating wavelength: 1310nm / 1550 nm ±10nm

Light source output power: -11dBm

OPM port: SC, FC, ST(interchangeable)

Wavelength calibration: 850 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650nm

Power range: -70 to +6dBm (Accuracy: 0.01dB)

Dimension: 6.25H x 8.58W x 2.75D inches

Weight: 3.75pounds (1.70kg with battery)

Operating condition: -10~50℃

Storage condition: -20~60℃

Relative humidity: 0~95% (Noncondensing)
