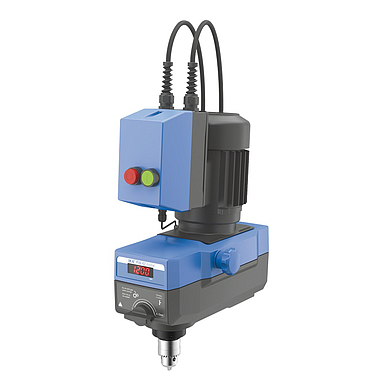

IKA RW 47(0004050000)搅拌器

  • 制造商:IKA
    Model: RW 47 digital (0004050000)
    来源: Germany
    保障: 12 Month
  • 联系
    • 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Stirring quantity max. per stirring position (H2O): 200 l

Motor rating input: 513 W

Motor rating output: 370 W

Motor principle three-phase current

Speed display: LED

Speed range: 57 - 1300 rpm

Viscosity max.: 100000 mPas

Output max. at stirring shaft: 300 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 3000 Ncm

Torque max. at stirring shaft at 60 1/min (overload): 4642 Ncm

Torque max. at stirring shaft at 100 1/min: 3000 Ncm

Torque max. at stirring shaft at 1.000 1/min: 285 Ncm

torque I max.: 3000 Ncm

torque II max.: 620 Ncm

Speed range I (50 Hz): 57 - 275 rpm

Speed range II (50 Hz): 275 - 1300 rpm

Speed control: stepless

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement: 10 ±rpm

Stirring element fastening: chuck

Chuck range diameter: 3 - 16 mm

Hollow shaft, inner diameter: 13 mm

Fastening on stand: flange

Speed control: mechanical

Nominal torque: 30 Nm

housing material: alu-cast coating / thermoplastic polymer

Dimensions (W x H x D): 145 x 465 x 358 mm

Weight: 16 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 54

Voltage: 3 x 400 / 3 x 230 V

Frequency: 50 Hz

Power input: 513 W

Details

Datasheet
