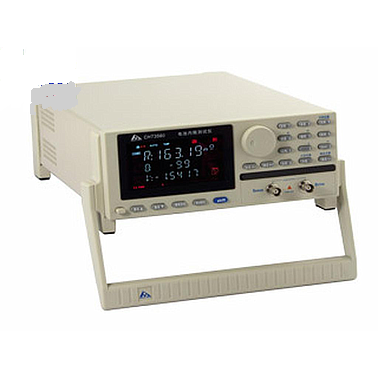

Hopetech CHT3562 电池内阻测试仪（1mV~60V，0.1％，ESR，DCV，θ）
制造商: Hopetech Model: CHT3562 - 报价要求
- 报价要求
- 联系
-Measurement parameters: ESR,DCV,θ
-Basic accuracy:
+Resistance: 0.5%
+Voltage: 0.1%
-Measurement range:
+Resistance: 10μΩ ～ 300Ω
+Voltage:1mV～60V
-Signal Source:
+Measurement current frequency:1kHz;
+Open circuit voltage:<20mV;
+Test current:<10mA
-Range:
+Six different ranges 30mΩ,300mΩ,3Ω,30Ω,300Ω
+Auto and manual modes are available in each range
-Measuring speed: 2 meas/sec.,8 meas/sec.,25 meas/sec.
-Result display: Direct read,ABS, %, , sorting results
-Maximum display value:
+Resistance:32,000;
+Voltage:6,000
- Power supply
+Voltage:198VAC～240VAC;
+Frequency: 47Hz～63Hz;
+Power: max 15VA
-Dimension & weight: 385mm(L)x249mm(W)x102mm(D);
-Weight: 3.5kg
| CHT3562 battery tester is used to measure the internal resistance and voltage of batteries. The 3560 can be applied to simultaneously measure the internal resistance and voltage of batteries and comparison of battery internal resistance and open-circuit voltage. Equipment with its standard features RS232C and hander interfaces, CHT3560 offers automatic measurement on batteries and check the battery deterioration fast and precisely. CHT3560 can be used for product sorting delivery inspection in battery production lines. CHT3560 main functions are compatible with HIOKI 3560 and Agilent 4338B. It offers high measurement speed and good stability. |
|
Model |
CHT3562 |
|
Measurement parameters |
ESR,DCV,θ |
|
Basic accuracy |
Resistance: 0.5% Voltage: 0.1% |
|
Measurement range |
Resistance:10μΩ ～ 300Ω; Voltage:1mV～60V |
|
Signal Source |
Measurement current frequency:1kHz; Open circuit voltage:<20mV;Test current:<10mA |
|
Range |
5 different ranges-30mΩ,300mΩ,3Ω,30Ω,300Ω； |
|
Measuring speed |
2 meas/sec., 8 meas/sec., 25 meas/sec. |
|
Result display |
Direct read, ΔABS,Δ%,θ, sorting results |
|
Maximum display value |
Resistance:32,000(3 2/3 ); Voltage:6,000 |
|
Calibration |
Short-circuit reset for all ranges; REL function |
|
Comparator |
1 set of data record,NG-LO, GD-IN, NG-HI display and output. Beeper is adjustable. |
|
Trigger mode |
Internal/manual/optional external trigger |
|
Power supply |
Voltage:198VAC～240VA; Frequency: 47Hz～63Hz; Power: max 15VA |
|
Dimension & weight |
385 mm (L)x249mm (W)x102mm (D); Weight: 3.5kg |
|
Accessories |
CHT9350 kelvin test wire |
|
Options |
CHT9350 kelvin test wire,CHT9800 RS232C interface cable, |
|
Others |
Test leads damage detection function, four-color VFD display, keypad lock and data hold function |
