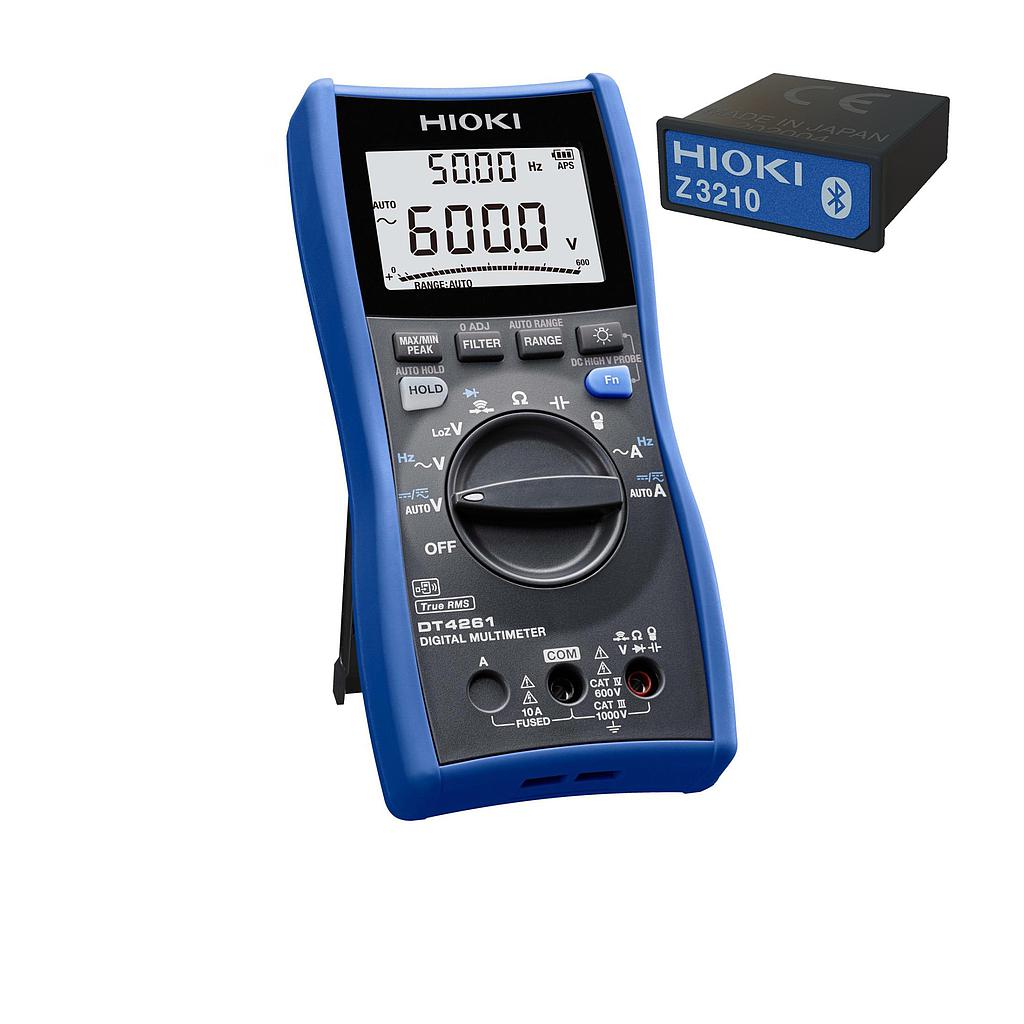

HIOKI DT4261 KIT 数字万用表 (Inluding DT4261+ Z3210)

  • 制造商:HIOKI
    Model: DT4261 KIT
    来源: Japan
    保障: 12 Month
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 立即购买
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




DC Voltage range:

  + 600.0 mV to 1000 V, 5 ranges

  + Basic accuracy: ±0.15% rdg. ±2 dgt.

AC Voltage range:

  + 6.000 V to 1000 V, 4 ranges

  + Frequency characteristics: 40 Hz to 1 kHz

  + Basic accuracy: 40Hz - 500Hz: ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3 or less)

DC + AC Voltage range:

  + 6.000V to 1000V, 4 ranges

  + Frequency characteristics: DC, 40Hz to 1kHz

  + Basic accuracy: DC, 40Hz - 500Hz: ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less)

LoZ V:

  + 600.0 V, 1 range

  + Frequency characteristics: DC, 40 Hz to 1 kHz

  + Basic accuracy: DC, 40 Hz - 500 Hz: ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less)

Resistance range:

  + 600.0 Ω to 60.00 MΩ, 6 ranges

  + Basic accuracy: ±0.7% rdg. ±3 dgt.

DC Current range:

  + 600.0 mA to 10.00 A, 3 ranges

  + Basic accuracy: ±0.5% rdg. ±3 dgt.

AC Current range:

  + 600.0 mA to 10.00 A, 3 ranges

  + Basic accuracy: 40 Hz - 500 Hz: ±1.4% rdg. ±3 dgt. (True RMS, crest factor 3 or less)

  + Frequency characteristics: 40 Hz to 1 kHz

AC Current range (use with Clamp on probes):

  + 10.00 A to 1000 A, 7 ranges

  + Basic accuracy 40 Hz - 500 Hz: Add the Clamp on probe accuracy to ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3 or less)

Capacitance range:

  + 1.000 μF to 10.00 mF, 5 ranges

  + Basic accuracy: ±1.9% rdg. ±5 dgt.

Continuity Check: Continuity threshold ON : 25 Ω, Continuity threshold OFF : 245 Ω, Response time: 0.5 ms or more

Voltage frequency range:

  + 99.99 Hz to 99.99 kHz, 4 ranges (Limited by minimum sensitivity voltage)

  + Basic accuracy: ±0.1% rdg. ±1 dgt.

Current frequency range:

  + 99.99 Hz to 9.999 kHz, 3 ranges (Limited by minimum sensitivity current)

  + Basic accuracy: ±0.1% rdg. ±1 dgt.

Display: Main and sub displays: 4-digits LCD, max. 6000 digits (excluding frequency measurement), bar-graph

Display refresh rates: 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 times/s)

Power supply: LR6 (AA) alkaline batteries × 3, Continuous operating time: 130 hr. (without Z3210 installed), 70 hr. (with Z3210 installed and using wireless communications)

Dimensions and mass: 87 mm (3.43 in.) W × 185 mm (7.28 in.) H × 47 mm (1.85 in.) D, 480 g (16.9 oz.) (with test leads holder and batteries)

Included accessories:

- Test Lead L9300 × 1

- Instruction Manual × 1

- LR6 (AA) alkaline battery × 3

- Operating Precautions ×1

DT4261, adapter Wireless Z3210
