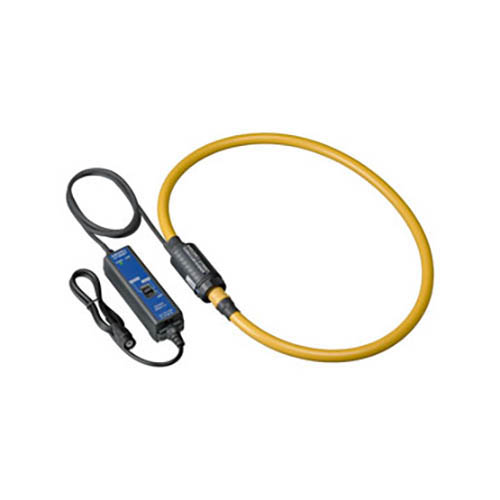

HIOKI CT9667-03 FLEXIBLE CLAMP ON SENSOR
制造商: HIOKI Model: CT9667-03 来源: Japan - 联系
Rated input current :AC 5000 A to 500 A AC 500 A to 50 A
Rated output current: 500mV AC f.s. (0.1mV AC/A) 500mV AC f.s. (1mV AC/A)
Amplitude accuracy : ±2% rdg. ±0.3% f.s. (
Phase accuracy :±1° (45 to 66 Hz)
Max. allowable input Continuous 10000 A rms (at 45 - 66 Hz)
Frequency characteristics :10 Hz to 20 kHz ±3 dB (deviation from accuracy)
Max. rated voltage to earth :1000 V AC rms (insulated wire)
Core jaw dia. :φ 254 mm (10 inch)
Power supply :LR06 (AAA) × 2
Accessories :LR06 (AAA) alkaline batteries × 2
