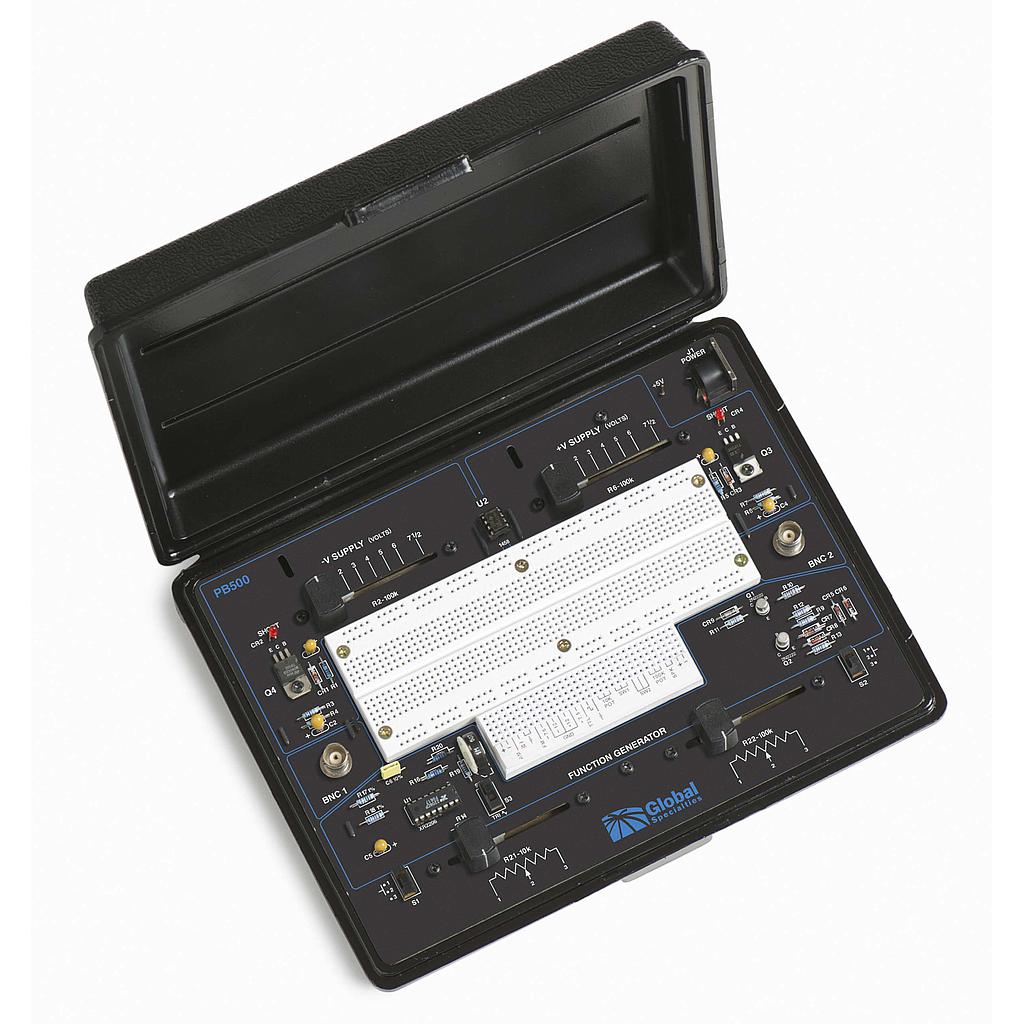

Global PB-500 便携式模拟电路训练器
制造商: Global Specialties Model: PB-500 - 联系
Power Supplies
Fixed ±12 VDC @ 200 mA
Variable 0 to ±7.5 VDC @ 50 mA
Frequency
User variable by external capacitor (0.1 Hz to 100 kHz)
User FM control line
Duty Cycle
50% of all waveforms
Amplitudes (Typical)
Sine: 4 Vpp, 10 kΩ load
Triangle: 9 Vpp, 10 kΩ load
Square: 8 Vpp, 10 kΩ load
Signal Connections
All signals and functions connected to a solderless interconnect socket which has 5 tie-points available for each signal
Weight
1 lb 12 oz including AC power adapter
Overall Dimensions
2.56 in H x 7.5 in W x 10 in D
