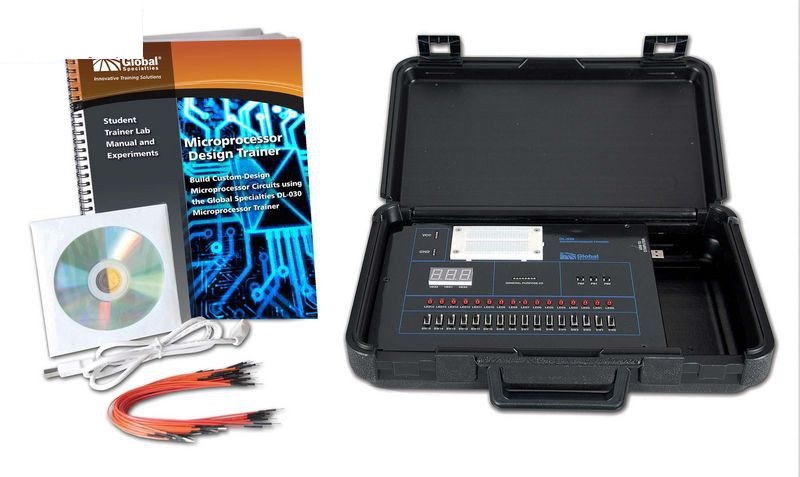

Global DL-030 微处理器设计培训器（FPGA）

DL-030 Microprocessor Design Trainer
FPGA: Altera Cyclone ®III EP3C16F256C8N 16k LE
Microprocessor: Altera Nios® II embedded processor
Logic Indicators: 16 independent LED
Seven-Segment Displays: Three sets of independent 7-segment displays
Slide switch: 16, debounced
Push Button Switch: 3, debounced
Clock: 16 MHz
I/O: 8-pin gereral purpose
Bread Board: 270 tie point
Tie Points: 4-input 5Vcc, 4-input GND
Machined Pin Connecting Wires: 100 pcs
USB Interface: USB extension cable
Physical Dimensions: 244 x 175 x 40 mm (9.6 x 6.9 x 1.6 in
Training Manual with Hands-On Labs
137 page manual, 11 hands on labs
System Requirements
Windows XP or higher (32-bit only)
Software CD
Quartus® II Design Software, Nios® II Embedded Design Suite, plus more
