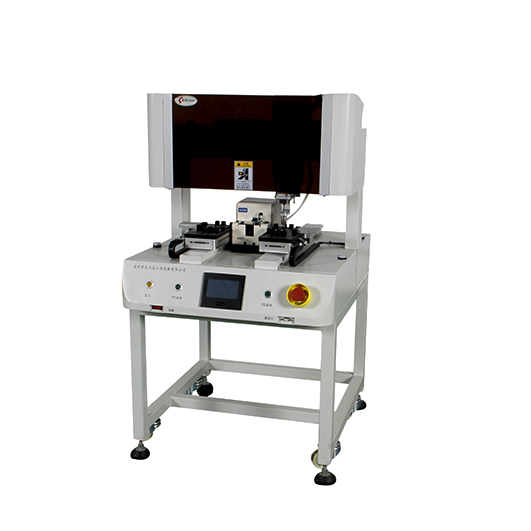

Garland ATS-500II 自动锁付螺丝机

Number of operators: one or none

Model: Countertop type (rack option)

Dimensions: L*W*H: 750*660*670(mm)

Weight: 100KG

Operating area: Protective

Reclaiming method: Vacuum suction

Number of electric batches: 1PCS

Number of feeders: 1PCS

Number of work stations: 2PCS

Fixture: custom made

Gas source: 0.4-0.8MPa, oil-free, dry

Power supply: 220V 50HZ

Power: 300W

Applicable screw specifications: Below M3

effectiveness: 1.0s-1.2s/piece

NPL ratio: 1‰ or less (in number of screws)

speed: X, Y, Z-800, 800, 800mm/s

Precision: +/-0.02mm

Applicable product size: L*W*H--120*200*20(mm)

Alarm item: Sliding teeth, leaking, floating height (optional)

Electric batch torque: Adjustable

Operation interface: touch screen

Coordinate storage: 60

Number of locks: 24

Control unit: 4 axis motion controller

Power: Stepper motor / servo motor

Transmission method: Precision timing belt / roller screw

Operating mode: Front/front, front/back

Model switching time: Within 15 minutes

Data communication: USB port export (optional)

Annex: Coordinate adjustment handle

Details

-This machine is a countertop type, compact and compact.

The performance of the machine is similar to that of other series of machines in our company.

Applicable to screws below M3, there is no strict requirement on the tooth type and screw length to diameter ratio.

The working mode is single player mode and unmanned mode, and you can choose freely according to your needs.


-Efficient: 1.0s-1.2s/piece

-can completely replace the manual lock screw station,

-cost - effective,

-versatile,

-can store a variety of products, screw coordinates are

-stable and reliable

-Easy to learn and use
