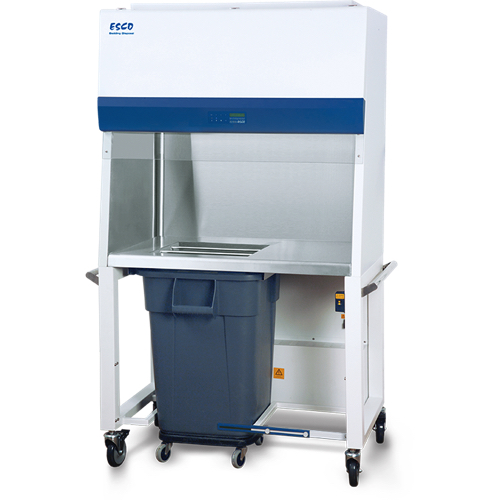

ESCO VBD-4A1 Bedding disposal animal workstations (4ft/1.2m, 220-240 VAC, 50 Hz)

Nominal Size: 1.2 meter (4')

External Dimensions (W x D x H): 1247 x 760 x 1966 mm  minimum height, 1247 x 760 x 2271 mm  maximum height

Internal Work Area (W x D x H): 1040 x 680 x 594 mm

Work Surface Height: 920 mm - 1225 mm (36.2" - 48.2")

Front Opening: 400 mm (15.7")

Inflow Velocity: 0.35 m/s (70 fpm) at initial setpoint

Pre-Filter: Disposable, non-washable polyester fiber, 85% arrestance, EU3 rated

ULPA Filter Typical Efficiency: >99.999% at 0.1 to 0.3 microns as per IEST-RP-CC001.3 USA

Sound Emission* Per EN 12469: <65 dBA

Fluorescent Lamps: > 1,300 lux (> 121 foot candles)

Workstation Construction: Main Body: 1.2 mm (0.05") 18 gauge electro-galvanized steel with Isocide™ white oven-baked epoxy-polyester powder-coating

Work Top: 1.2 mm (0.05") 18 gauge stainless steel, type 304, with 4B finish

Inner Liner: 0.9 mm (0.035") 20 gauge stainless steel, type 304, with 4B finish

Net Weight: 233 Kg (514 lbs)


Voltages: 220-240 VAC, 50 Hz, 1Ø

Cabinet Full Load Amps (FLA): 3 A

Optional Outlets FLA: 5 A

Cabinet Nominal Power: 309 W

Cabinet BTU: 1054

*Noise as measured in an open field/ anechoic chamber

Bedding disposal animal workstations are specifically designed to protect the personnel and the lab environment from exposure to allergens and unpleasant odors. The industry-exclusive hydraulic height-adjustable stand allows the work surface height to be adjusted to user preference therefore minimizing strain during repetitive operations. An integrated waste container enables direct disposal of waste items within the work zone offering simpler, safer, and more productive cage cleaning and bedding disposal procedures.
