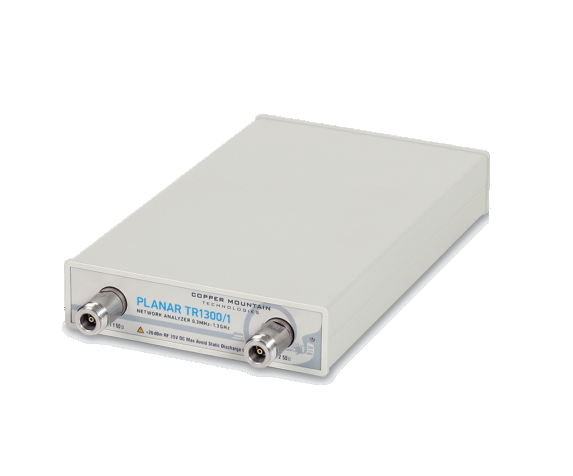

Copper Mountain Planar TR1300 /1 矢量网络分析仪(0.3 MHz - 1.3 GHz,2端口1路径(S11,S21))
制造商: COPPER MOUNTAIN Model: Planar TR1300/1 - 联系
The highly compact Planar TR1300/1 VNA is a 1.3 GHz, 2-port 1-path instrument, capable of 130 dB dynamic range and designed for operation with any Windows PC or laptop. Thanks to its unmatched portability, TR1300 can be shared easily within a team or brought to test sites. The free, lightweight VNA application connects to the TR1300 with a standard USB cable, creating a future-proof solution that significantly enhances ease of use compared with conventional instruments.
The TR1300 provides a wide variety of analysis capabilities, including time-domain with gating and frequency offset modes, at no additional cost. Collection of metrology-grade S-parameter test results can be achieved manually or through automation in Python, MATLAB, Excel, C++, VB.NET, or LabVIEW.
- Frequency range: 300 kHz to 1.3 GHz
- Measured parameters: S11, S21
- Sweep types: Linear frequency, log frequency, segment, power sweep
- Dynamic range: 130 dB (10 Hz)
- Measurement speed: 150 µs per point at 95 dB dynamic range
- Output power adjustment range: -55 dBm to +3 dBm
- Up to 16,001 measurement points per sweep
Applications of the TR1300 include RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurement, antenna matching, quality control, material measurements, and many others. Curious to see what other users think of this device?
Data Sheets
Manuals
Software
- TR1300/1 Installer
(v0.8.14; July 24, 2015) - TR1300/1 Simulator/Demo
(v0.8.14; July 24, 2015) - TR1300/1 Software Release Notes
