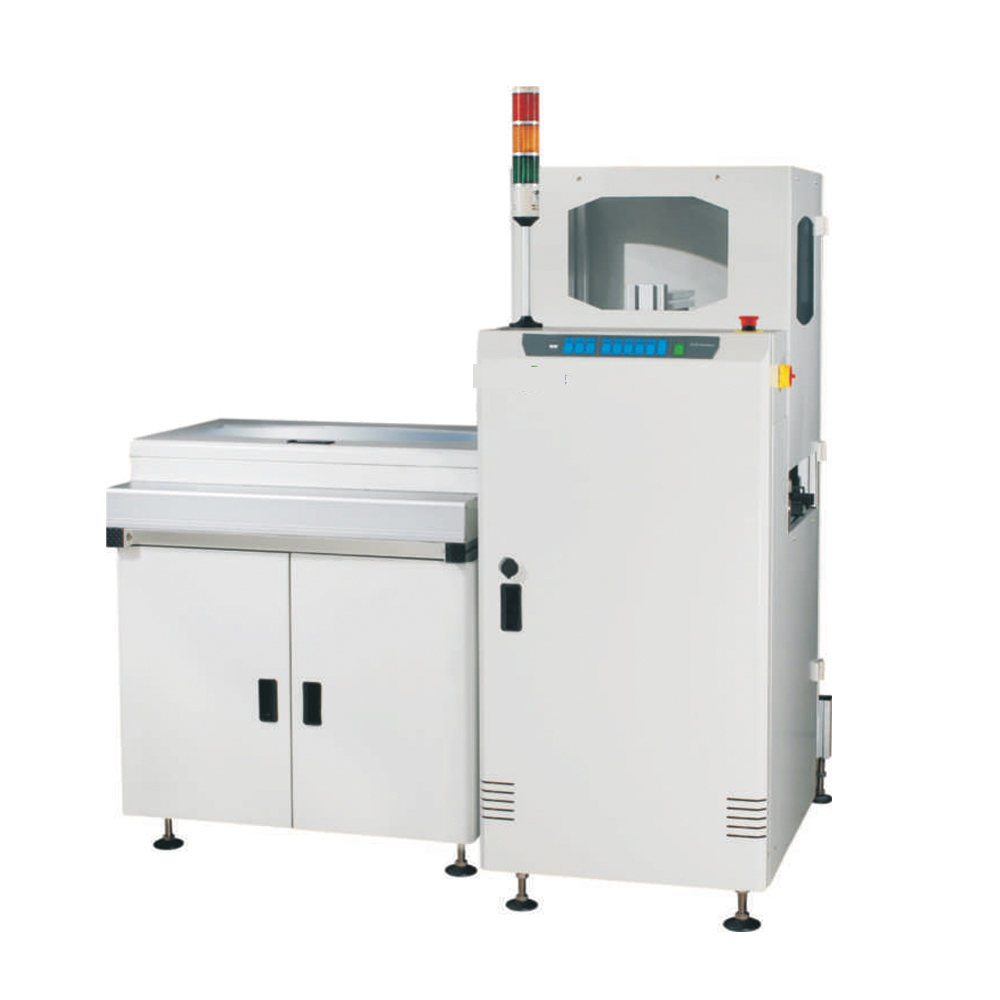

Censtar BM-M-TN PCB Magazine缓冲输送机 (1150*1150*1205mm, 50 * 50-330 * 250mm)
制造商: Censtar Model: BM-M-TN - 报价要求
- 报价要求
- 联系
Dimension(L*W*H): 1150*1150*1205mm
PCB size(L*W): 50*50-330*250mm
Magazine size(L*W*H): 355*320*563mm
Maximum PCBs capacity: 50pcs or specify
No. of magazine: Loader: upper 1, lower 1
Quantity of rail: Single rail
Belt type: 4mm flat belt
Load bearing: 2kg/PCB
Transport height: 900±20mm(or custimzie)
Cycle time: 10 Seconds or specity
Indexing pitch: 10. 20. 30. 40mm selectable
Power supply: AC 220V±10V, 50/60HZ
Power: Max 250VA
Air prssure: 4-6bar
Air consumption: 15itr/min max
Screen size: 7 inch
PCB thickness : 0.6-4mm
Transport direction: L-R or R-L
CE: Yes
PLC: Yes
SMEMA: Yes
Weight: 160kg
This equipment is used after AOI, and the NG and OK boards are separated into boxes and temporarily stored.
Features
1.PLC+LED touch screen controller, easy to operate.
2.The upper and lower air clamps ensure the location of the magazine accurately.
3.Special gas path design ensures that the PCB panel is not pushed.
4.Six modes of operation:FIFO( first in first out),LIFO( last in first out), Loader, Unloader, NG board BUFFER and PASS.
5.Fast, smooth and precise search and location.
6.With SMEMA signal.
