Castle NK112 安全和环境评估系统（1级，Octave 1/3,12.5 Hz-20 kHz）

-Applicable Standards: IEC 61672-1:2013, IEC 61672-1:2014 (Where Octave Brands Fitted, IEC 61672-1:2014 (Where Octave Brands Fitted), IEC 61672:1993 amendment 1:2000 (Where Exposure Fitted)
-Microphone: Type 1 Pre-Polarised 1/2" (13.2 mm), Electrate Condenser Microphone-27 dB + 2 dB re 1V/Pa
-Measurement Range: Linear Operating Range: 95dB
-Noise Floor:
+ A Weighting <15 db="" a="" rms="" br=""> +C Weighting <18 db="" c="" rms="" br=""> +Z Weighting <18 db="" z="" rms="" br=""> -Frequency Weightings:
+Measurement 1:A, C or Z
+Measurement 2:A, C or Z
-Frequency Range: 1Hz-20 kHz (electrical characteristics). Class 1: 12.5 Hz-20 kHz (Including microphone)
-Time Weighting:
+Measurement 1: Slow, Fast, Impulse
+Measurement 2: Slow, Fast, Impulse
-Display: 2.4 inch Full Colour TFT 240x320 pixels
-Dual Measurements: Simultaneous dual measurement with independent time and frequency weightings.
-Octave Band Analysis: Where fitted 1/1 or 1/3 octave band analysis on measurement 1 only.
-Measurement Parameters: LSPL, LE, LEQ, LMAX, LMAX, Lns, Peak
-Time History:
+ Short Interval: 10ms to 60m
+ Long Interval: 1s to 24h
+ Smart Timer, Duration Timer or Interval Timer
- Memory: 16GB
- Input / Output Connection: Micro USB Type B
- Power: Batteries: 4 x AA (1.5V), Approximately 16 hours continuous operation (screen settings dependent), USB Socket
- Dimensions:
+Including Pre-Amplifier: 210mm (H) x 70mm (W) x 30mm (D)
+Excluding Pre-Amplifier: 145mm (H) x 70mm (W) x 30mm (D)
-Weight: 480g approximately (including batteries)

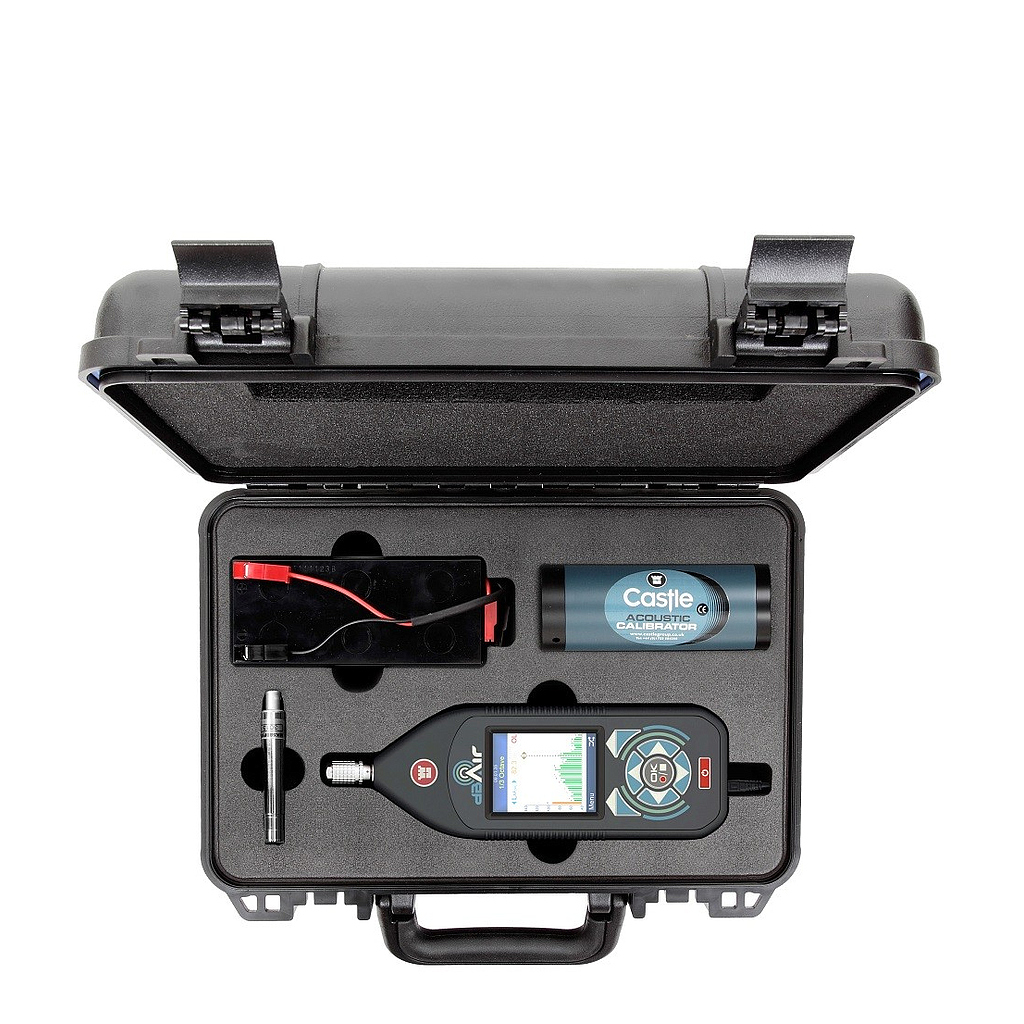

-Include:
+ GA141SEO dBAir Safety & Environment Octave (1/1, 1/3) Class 1
+ GA607 Calibrator, Dual Level, Class 1 (includes GA690 Barometer)
+ CCPROFREE FREE Pro Account for Castle Cloud - 5 Users (1 Year) (For Systems)
+ KA017 Protective System Carry Case (dBAir)
+ dB001 dBAir Rubber Case
