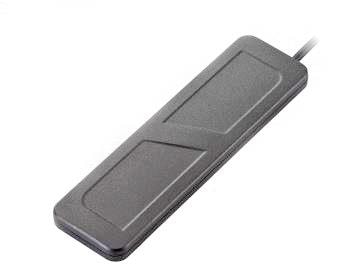

Passive Antenna GSA.8835 Phoenix External 5G/4G Antenna Fully IP67 Waterproof Taoglas GSA.8835.A.101111
Hãng sản xuất: Taoglas Model: GSA.8835.A.101111 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Gain: 1.1 dBi, 1.7 dBi, 1.2 dBi, 3.5 dBi, 2.9 dBi, 2.1 dBi, 2 dBi, - 1 dBi
Style: I-Bar
Width: 30 mm
Height: 7.9 mm
Length: 105 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: RG174
Application: Transportation, Agriculture, Autonomous VehiclesRobotics
Cable Length: 1 m
Polarization: Linear
Power Rating: 1 W
REACH - SVHC: Details
Mounting Style: Adhesive Mount
Number of Bands: 8 Band
Center Frequency: 657 MHz, 700 MHz, 850 MHz, 900 MHz, 1575.42 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, 3400 MHz, 5200 MHz, 5800 MHz
Mechanical Style: Module
Maximum Frequency: 6 GHz
Minimum Frequency: 600 MHz
Termination Style: Connector
Antenna Connector Type: SMA Male
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G NR, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, EDGE, GPRS, HSPA, WCDMA
