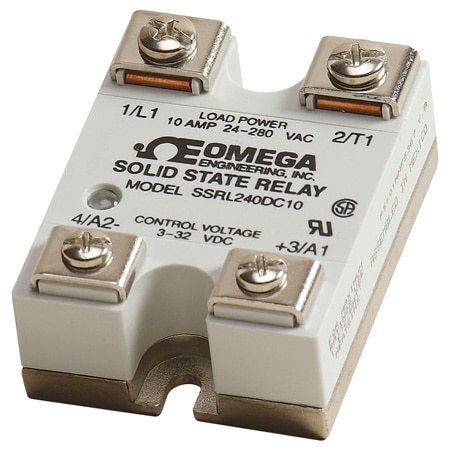

Solid State Relays with AC or DC Control Inputs OMEGA SSRL240DC25 (14 mA)
Hãng sản xuất: OMEGA Model: SSRL240DC25 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Features: High Reliability
Frequency: 47 to 63 Hz
Power Cycle: Turn-On Time: 5 Cycles; Turn-Off Time: 5 Cycles
Current Draw: 100 mA
Voltage, Max: 800 V
Current Output: 25 A
Supply Voltage: 24 to 280 Vac
Leakage Current: 0.1 mA
Number of Phases: 1
Thermal Sensitivity: 416
Input Control Signal: 3 to 32 Vdc
Leakage Current Note: Maximum Off-State Leakage (25°C Maximum Ambient @ 120Vac,240 Vac)
Surge Current Rating: 1 Cycle, Max: 150 A; 1 s, Max: 30 A
Operating Voltage, Min: 1.6 V
Isolated Analog Voltage: 4000 Vrms
Measurement Current, Max: 14 mA
Storage Temperature, Max: 80 °C
Storage Temperature, Min: -40 °C
Operating Temperature, Max: 80 °C
Operating Temperature, Min: -20 °C
Input-to-Output Capacitance: 8 pF
Input/Output-to-Ground Isolation: 2500 Vrms
