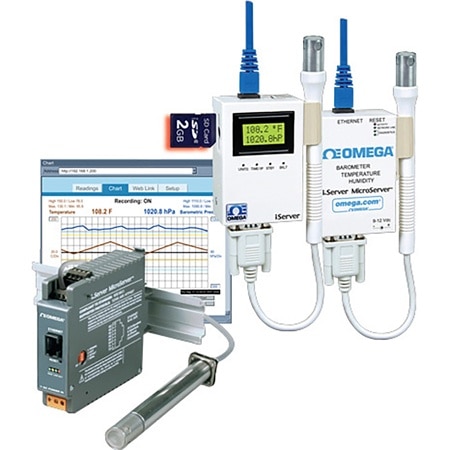

Máy phát áp suất khí quyển, nhiệt độ và độ ẩm iServer MicroServer™ OMEGA IBTX-SD-5 (Probe, Wall Bracket Mount)

Width: 2.42 in

Height: 1.44 in

Length: 3.56 in

Weight: 0.25 lb

Software: OPC Server; macro for data logging in Excel program; compatible with Windows® operating systems

Approvals: CE, FCC-B

Hysteresis: ± 1% RH

Input Type: External

Form factor: Wall Bracket Mount

Probe Style: Industrial Probe

Sensor Type: Probe

Cable Length: 10 ft

Probe Length: 5 in

Accuracy Note: Accuracy/Range at 25°C: Non-Condensing: 10 to 90%: 2.75% RH, 5 to 10% and 90 to 95%: ± 3% , 0 to 5% and 95 to 100%: ± 4%

Configuration: Internal Web UI

Non-Linearity: ± 3%

Pressure, Max: 110 kPa

Pressure, Min: 1 kPa

RH Resolution: 0.1%, 12 bit

Repeatability: ± 0.1%

Response Time: Temperature: 5 to 30 sec, RH: 8 sec

Data Interface: Ethernet

Probe Diameter: 0.63 in

Supply Voltage: 9 to 12 Vdc

Measurement Type: Barometric Pressure, Dew Point, Relative Humidity, Temperature

Pressure Accuracy: ± 3.5 mbar

Supply Power Note: Safety-Qualified AC Power Adaptor, Nominal Output: 9 Vdc @ 0.5 A , Input (iBT(H)X-W, iBTX-SD): 100 to 240 Vac, 50/60 Hz (included), Switching Power Supply (iBT(H)X-D): Sold separately (iDRN-PS-1000), Back-up Battery (iBTX-SD): 9V alkaline (included)

Supply Power Type: DC/Battery

Response Time Note: Temperature: 5 to 30 seconds, tau 63%, RH: 8 seconds, tau 63%

Data Interface Note: Ethernet (RJ45): 10BASE-T Protocols :TCP, UDP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet

Pressure Resolution: 0.1 mbar

RH Measurement Range: N/A

Temperature Accuracy: ± 0.5 °C

Electrical Connection: Sub-D Male Miniature Connector

Number of Measurements: 3

Temperature Resolution: 0.1 °C

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Temperature Repeatability: ± 0.1 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: 0 °C

Relative Humidity Accuracy: ± 2.75% for 10 to 90%; ± 3% for 5 to 10% and 90 to 95%; ± 4% for 0 to 5% and 95 to 100%

Battery Operating Temperature: -18 to 55 °C

AC Adaptor Operating Temperature: 0 to 40 °C
