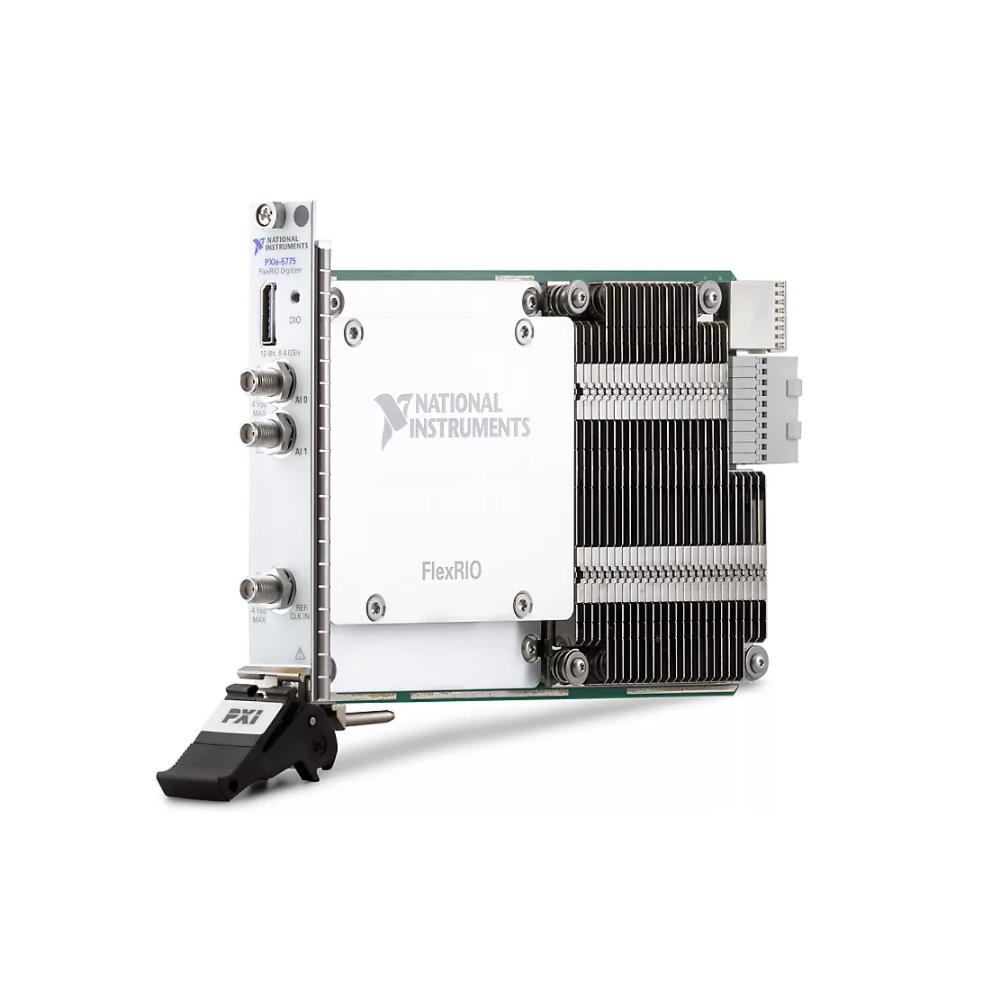

PXI FlexRIO Digitizer NI PXIe-5775 (2 Channel, 6.4 GS/s, AC, Kintex UltraScale KU040)
Hãng sản xuất: NI Model: PXIe-5775 P/N: 785591-01 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Number of Voltage Input Channels: 2
Maximum Sample Rate: 6.4 GS/s
Analog Input Resolution: 12 bits
Analog Input Coupling: AC
Analog Input Bandwidth: 6 GHz
Analog Input Voltage Range: 1.25 Vpp
FPGA: Kintex UltraScale KU040
Dynamic RAM (DRAM): 4 GB
Combines A/D converter technologies with Xilinx FPGAs for applications that demand real-time signal processing and high-performance analog input.
PXI FlexRIO Digitizers feature high-performance analog-to-digital converters with lightweight analog front-ends designed to maximize sample rate, bandwidth, and dynamic range. These modules use FPGAs from Xilinx alongside LabVIEW and Vivado programming options for custom algorithm implementation and real-time signal processing. For applications that require high channel counts, PXI FlexRIO Digitizers use the NI-TClk API and the timing and synchronization capabilities of PXI to achieve sub-sample synchronization between multiple modules in a chassis. These modules also feature an auxiliary I/O connector with GPIO for triggering or digital interfacing and the option for high-speed serial communication.
