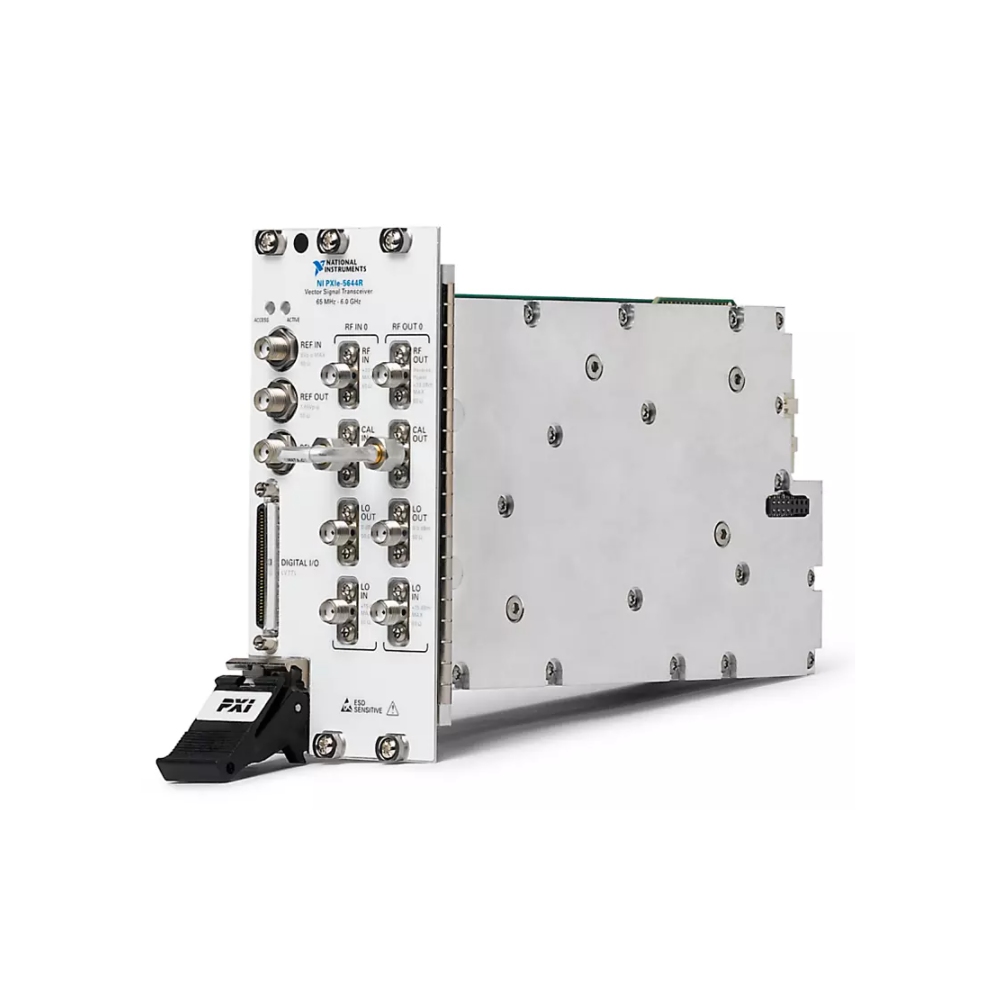

PXI Vector Signal Transceiver NI PXIe-5644 (65MHz ~ 6GHz, RF)
Hãng sản xuất: NI Model: PXIe-5644 P/N: 782376-01 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
I/O Type: RF
RF Generator Instantaneous Bandwidth: 80 MHz
RF Generator Frequency Range: 65 MHz to 6 GHz
RF Analyzer Frequency Range: 65 MHz to 6 GHz
RF Analyzer Instantaneous Bandwidth: 80 MHz
Generator Tuning Time (Typical): 0.95 ms
Combines a vector signal generator and vector signal analyzer with FPGA-based, real-time signal processing and control.
The PXI Vector Signal Transceiver (VST) combines the flexibility of a software defined radio architecture and RF instrument class performance. You can use the VST to test a variety of cellular and wireless standards, and you can easily expand the small PXI Express form factor to support multiple input, multiple output (MIMO) configurations. The VST software is built on LabVIEW FPGA, and features several starting points for your application including application IP, reference designs, examples, and LabVIEW sample projects.
Datasheet
