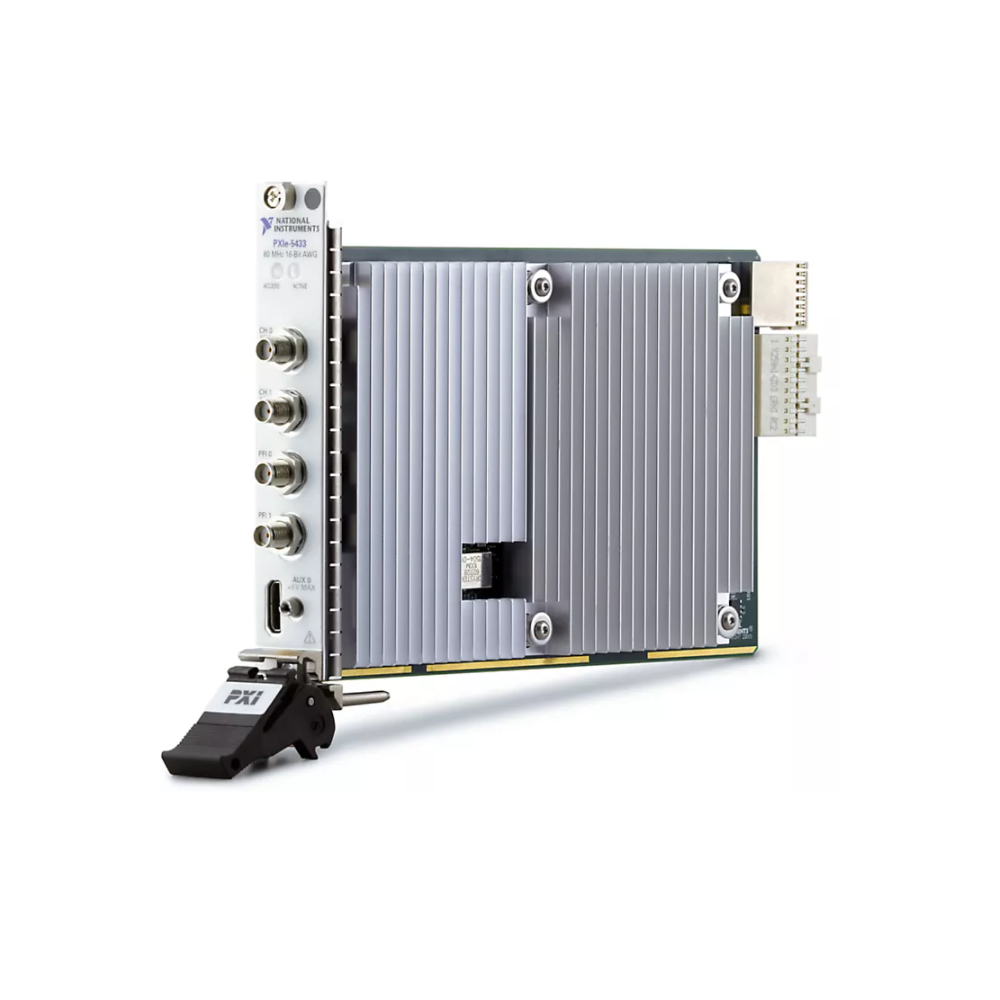

PXI Waveform Generator NI PXIe-5433 (2-Channel, 80 MHz, ±12V, 512 MB/channel)
Hãng sản xuất: NI Model: PXIe-5433 P/N: 785118-01 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Supports Scripting: Yes
Bus Connector: PXIe
Maximum Bandwidth: 80 MHz
Maximum Update Rate: 800 MS/s
Analog Output Resolution: 16 bits
Analog Output Voltage Range: -12 V to 12 V
Analog Output Onboard Memory Size: 512 MB/channel
Number of Output Channels: 2
Supports Arbitrary Waveforms: Yes
RF Signal Generation: No
Supports Digital Upconversion: No
Generates standard functions and user-defined, arbitrary waveforms as part of a PXI system.
PXI Waveform Generators can produce precise waveforms including sine, square, triangle, and ramp as well as arbitrary, user-defined waveforms using sequences of data or streaming continuously from a host or peer-to-peer instrument within the PXI system. These instruments are ideal for tightly synchronized, mixed-signal test systems in scientific research or test of semiconductor devices, consumer electronics, automotive, and aerospace/defense.
Datasheet
