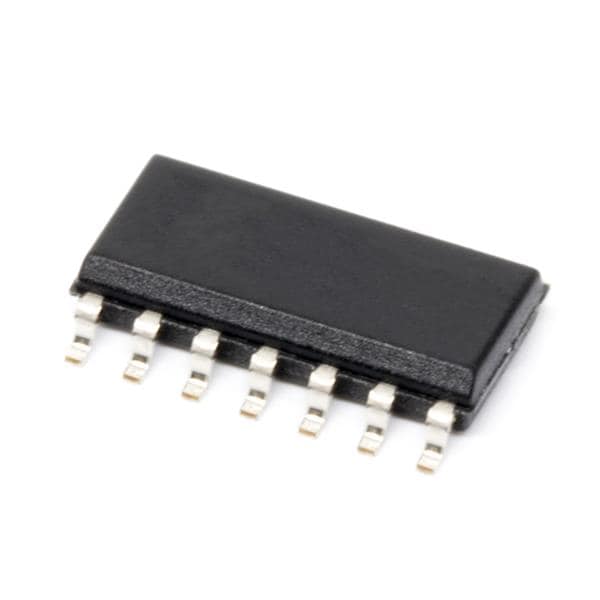

ADC 12-bit SPI 4 Chl Microchip Technology MCP3204-BI/SL
Hãng sản xuất: Microchip Technology Model: MCP3204-BI/SL - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Width: 3.9 mm
Height: 1.25 mm
Length: 8.65 mm
Shutdown: Shutdown
Input Type: Pseudo-Differential/Single-Ended
Resolution: 12 bit
Unit Weight: 338 mg
Architecture: SAR
Qualification: AEC-Q100
Sampling Rate: 100 kS/s
Interface Type: SPI
Mounting Style: SMD/SMT
Reference Type: External
Reference Voltage: 4.096 V
Moisture Sensitive: Yes
Number of Channels: 4 Channel
Number of Converters: 1 Converter
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.7 V
Analog Supply Voltage: 2.7 V to 5.5 V
Digital Supply Voltage: 2.7 V to 5.5 V
Operating Supply Voltage: 2.7 V to 5.5 V
INL - Integral Nonlinearity: 0.75 LSB
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
DNL - Differential Nonlinearity: 0.5 LSB
THD - Total Harmonic Distortion: - 82 dB
SFDR - Spurious Free Dynamic Range: 86 dB
SINAD - Signal to Noise and Distortion Ratio: 72 dB
