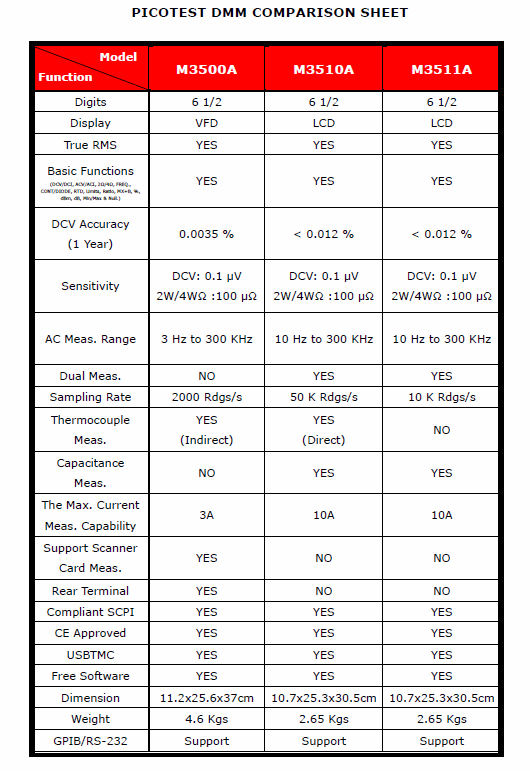

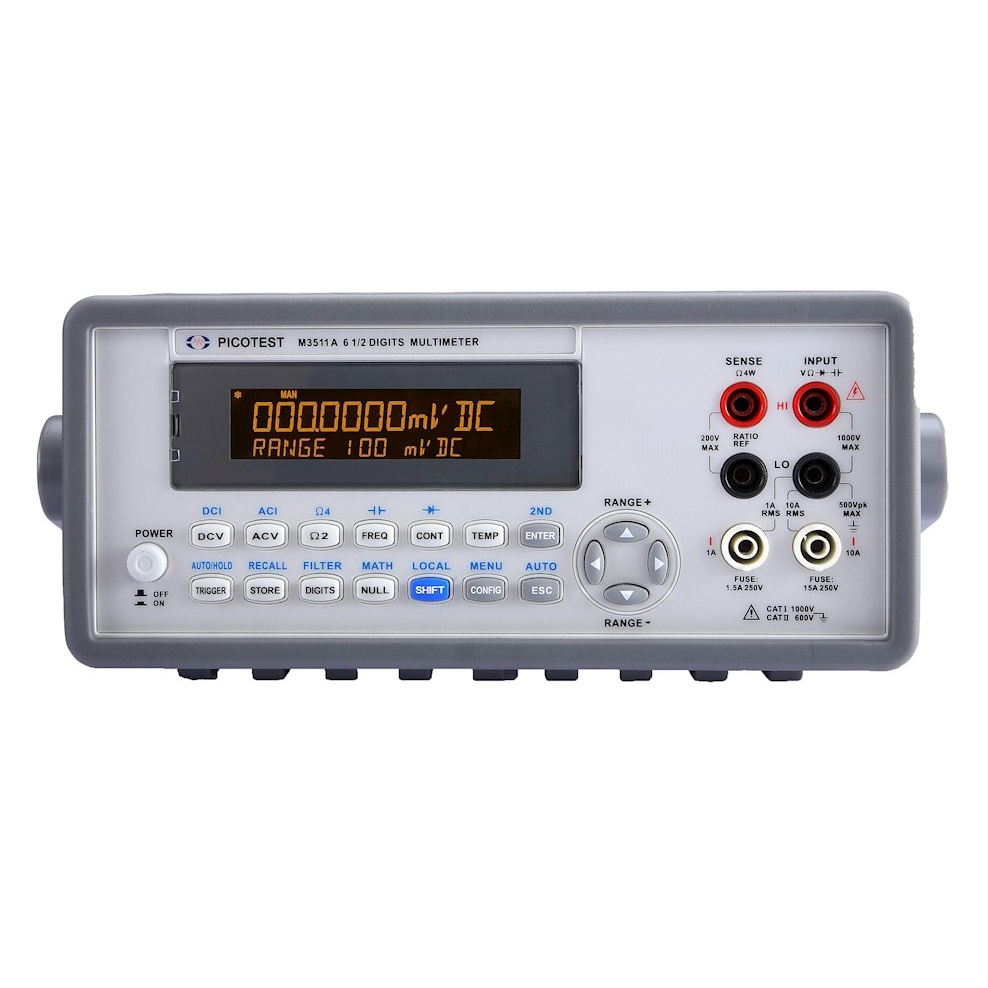

PICOTEST M3511A 디지털 측정기 (6 1/2 digits)

Digits: 6 1/2

Display: LCD

True RMS: Yes

Basic Functions: DCV/DCI, ACV/ACI, 20/40, Frequency, Continuity/Diode,...: Yes

DCV Accuracy (1 Year): < 0.012%

Sensitivity: DCV: 0.1 μV, 2W/4WΩ: 100 μΩ

AC Measurement Range: 10 Hz to 300 KHz

Dual Measurement: Yes

Sampling Rate: 10 K readings/s

Thermocouple Measurement: No

Capacitance Measurement: Yes

Maximum Current Measurement Capability: 10 A

Support Scanner Card Measurement: No

Rear Terminal: No

Compliant with SCPI: Yes

CE Approved: Yes

USBTMC: Yes

Free Software: Yes

Dimensions: 10.7 x 25.3 x 30.5 cm

Weight: 2.65 kg

GPIB/RS-232: Support

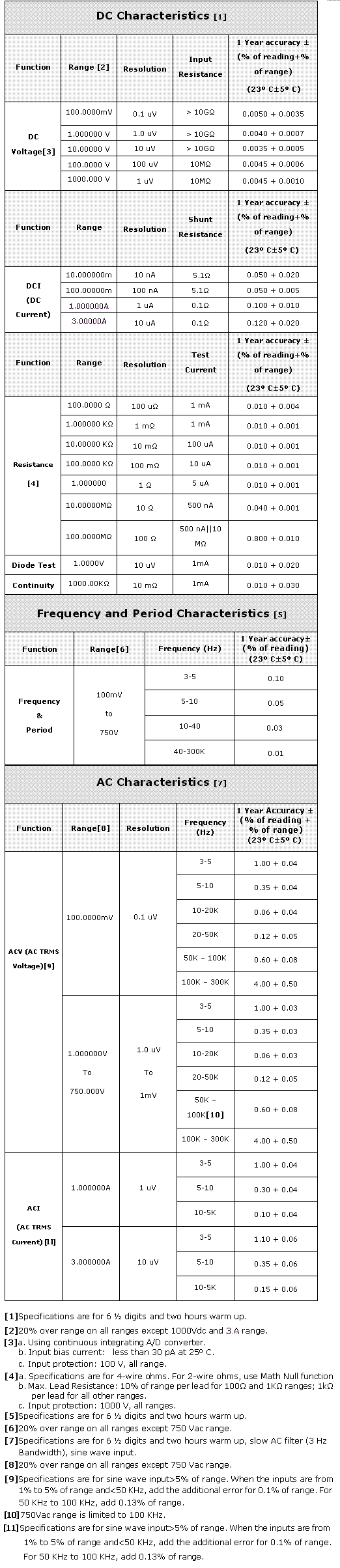

DC V: 100mV - 1000V

DC A: 10mA - 10A

Diode: 1V

Continuity: 1000Ω

Frequency: 10-40Hz

Period: 40-300K

AC V (TRMS): 100V - 750V

AC A (TRMS): 1A - 10A

Capacitance: 1nF - 10000µF

Sampling rate: 10 K Rdgs/s
