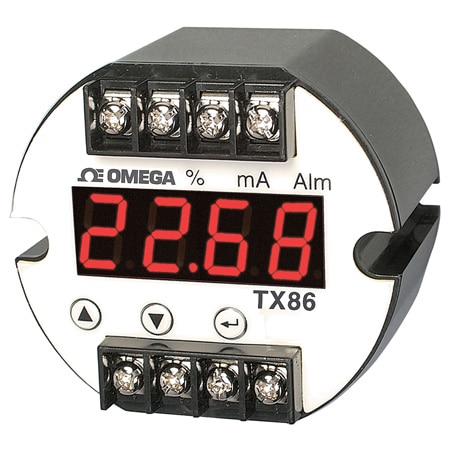

OMEGA TX86 Programmable Head Mount Temperature Transmitter for Thermocouples (Thermocouple, RTD, Resistance, Potentiometer, Voltage, J, K, T, E, R, S, B, N, 0 to 260 °C)

Height: 42 mm

Weight: 80 g

Accuracy: ± 0.2 %

Diameter: 62 mm

Mounting: Head-mounted

RTD Type: Pt100, Pt200, Pt500, Pt1000, NI120, CU10

Isolation: 1000 Vrms Continuous

Span, Min: 50°C

Stability: ± 0.15%/ year (Long Term Stability)

Input Type: Thermocouple, RTD, Resistance, Potentiometer, Voltage

Resolution: 2 μA

Output Load: 50 x (Vsupply – 12V) Ω

Sensor Type: Transmitter

Probe Length: 0 mm

Accuracy Note: ± 0.2% of full scale input

Output Detail: 4/20 mA calibrated; 3.8 to 20.5 mA linear Sensor Burnout: Upscale >21 mA, downscale <3.8 mA

Response Time: 1 sec with dampening off

Humidity Range: 20 to 90% RH non-condensing

Setup Controls: 3 pushbuttons on front

Supply Current: 30/150 µA ± 2%

Supply Voltage: 12 to 30 Vdc

Sheath Material: N/A

Housing Material: Plastic, Polycarbonate

Input Resistance: 0 to 2000 Ω

Electrical Output: 4 to 20 mA

Supply Power Note: 12 to 30 Vdc, LED indicator reverse polarity protected 60 Vdc

Supply Power Type: DC

Thermocouple Type: J, K, T, E, R, S, B, N

Input Control Signal: -5 to 60 mV

Electrical Connection: Screw Terminal

Programmable Functions: alarm, °C/°F, Cold Junction, control action, Dampening, Deadband, offset, Range, Sensor Burnout Indication

Wiring/Connector Table: 2- or 3-Wire

Temperature Coefficient: ± 0.01%/°C

Temperature Input Range: 0 to 260 °C

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -20 °C

Cold Junction Compensation: ±2°C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C
