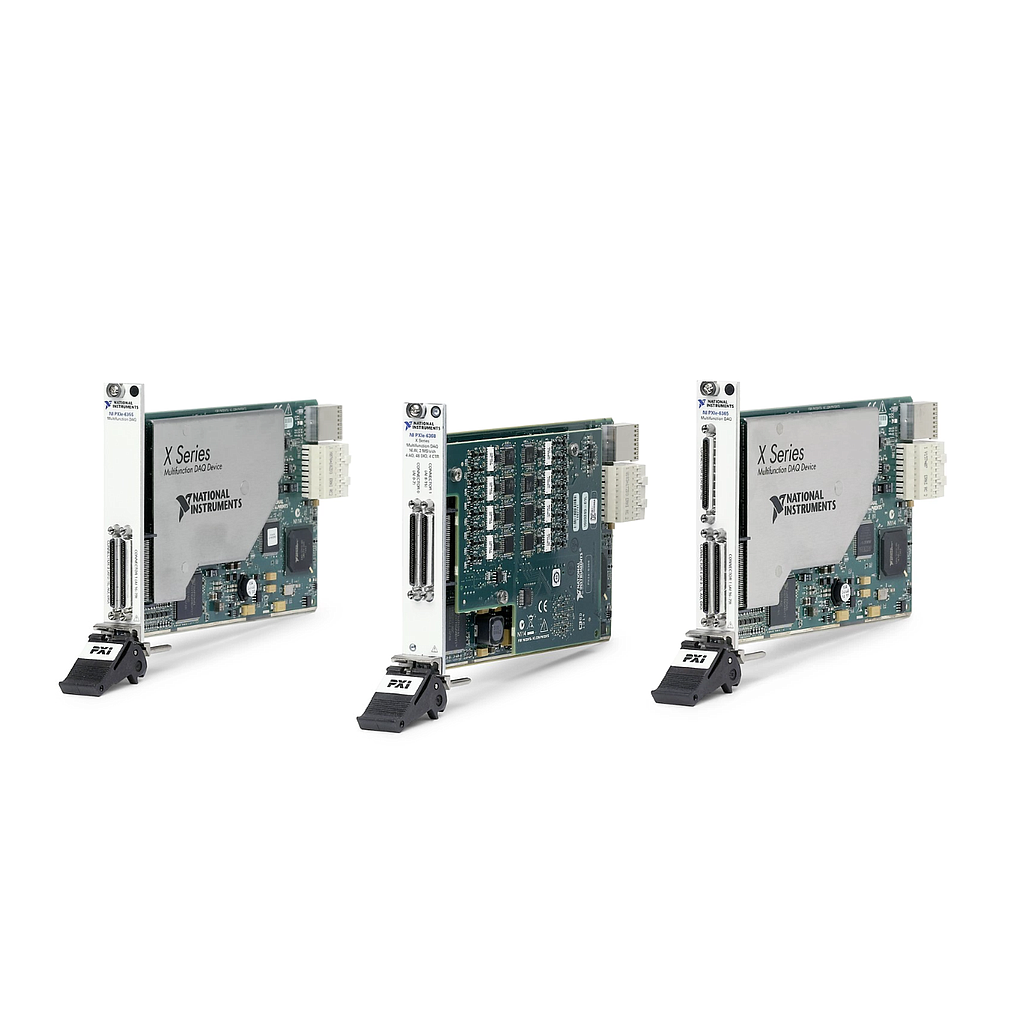

NI PXI-6238 PXI 다기능 I / O 모듈 (250 kS/s, 16 bits, 4095 samples)
생산업체: NI Model: PXI-6238 P/N: 779624-01 - 연락처
Bus Connector: PXI Hybrid
Maximum Number of Single-Ended Analog Input Channels: 0
Maximum Number of Differential Analog Input Channels: 8
Simultaneous Sampling: No
Maximum Sample Rate: 250 kS/s
Analog Input Resolution: 16 bits
Analog Input Absolute Accuracy: —
Number of Analog Output Channels: 2
Maximum Update Rate: 500 kS/s
Number of Bidirectional Digital Channels: 0
Current Flow Direction: Sourcing Output
Number of Counters/Timers: 2
Electrical Signal Measured: Current
Analog Input FIFO Buffer Size: 4095 samples
Provides a mix of analog I/O, digital I/O, counter/timer, and triggering functionality in a single PXI module.
The PXI Multifunction I/O Module provides I/O with varying numbers of channels, sample rates, and output rates with precise timing, triggering, and synchronization between models. This module can be used for industry applications such as laboratory research, design verification test, and manufacturing test.The PXI Multifunction I/O Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
Datasheet
