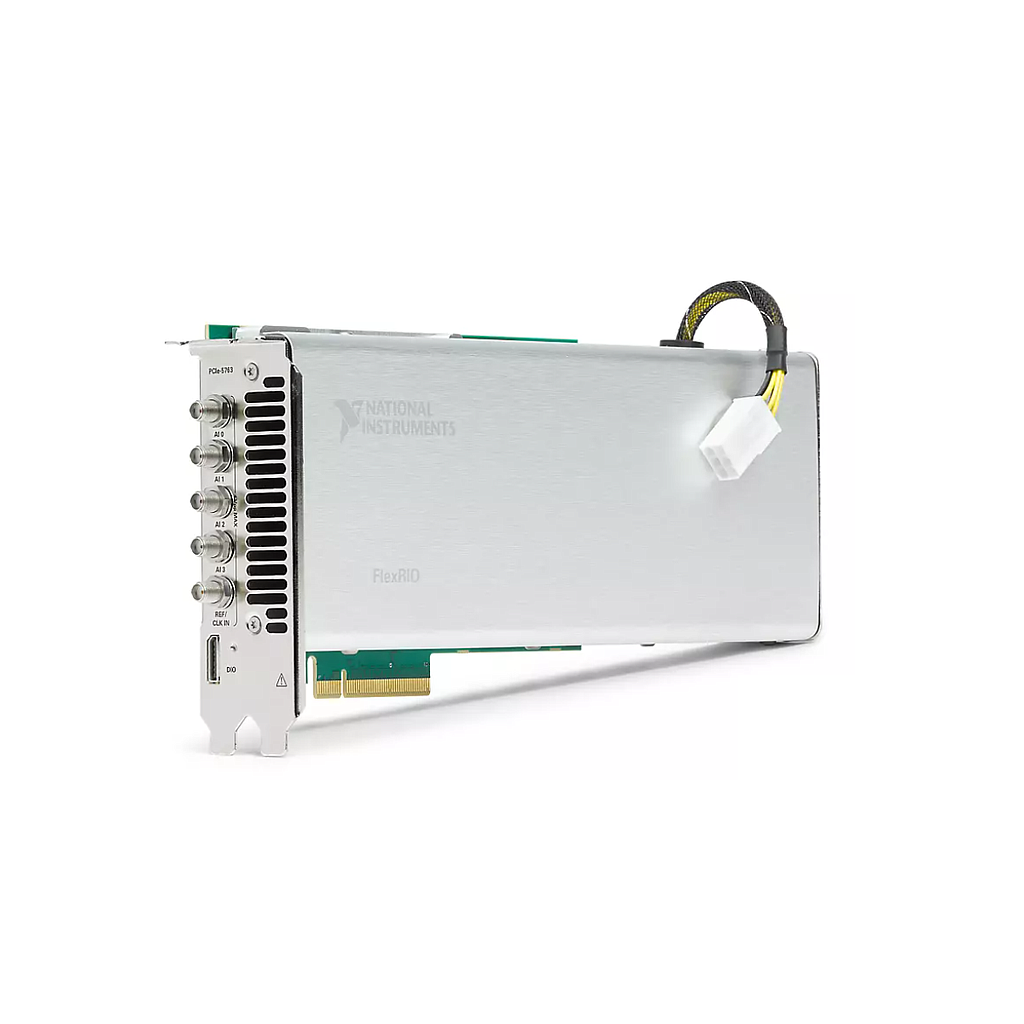

NI PCIe-5763 FlexRIO Digitizer Device (Kintex UltraScale KU060, DC, 500 MS/s, ± 1V, 4 Channels)
생산업체: NI Model: PCIe-5763 P/N: 786168-01 - 연락처
Analog Input Bandwidth: 225 MHz
Maximum Sample Rate: 500 MS/s
Dynamic RAM (DRAM): 4 GB
Analog Input Voltage Range: -1 V to 1 V
Analog Input Resolution: 16 bits
Number of Voltage Input Channels: 4
FPGA: Kintex UltraScale KU060
Analog Input Coupling: DC
Combines A/D converter technologies with Xilinx FPGAs for PCI applications that demand real-time signal processing and high-performance analog input.
FlexRIO Digitizer Devices feature high-performance analog-to-digital converters with lightweight analog front-ends designed to maximize sample rate, bandwidth, and dynamic range. These devices use FPGAs from Xilinx alongside LabVIEW and Vivado programming options for custom algorithm implementation and real-time signal processing. These devices also feature an auxiliary I/O connector with GPIO for triggering or digital interfacing and the option for high-speed serial communication.
Datasheet
