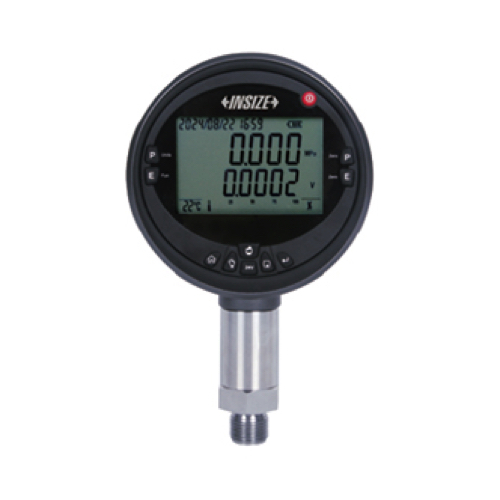

INSIZE 5240-N12Y016 디지털 압력 교정기 (0-160 kPa/0~1.6 bar, NPT1/2)

Range: (0-160)kPa/(0~1.6)bar

Connection: NPT1/2

Other ranges and connection can be customised according to customer requirements.

Accuracy: 0.05%FS

Overload pressure: 120%FS

Long-term stability: ±0.1%FS/year

Zero drift: ±0.1%FS

Dial diameter: 120mm

Pressure type: Gauge pressure

Unit: MPa, kPa, inHg, inH20, kgf/cm², mmH20, mmHg, mbar, bar, psi, Pa

Electrical connection: Measuring connection standard Ø4mm jack

Current measurement:

Range: (-30~30)mA

Resolution: 0.1μA

Accuracy: ±(0.01%RD+0.003%FS)

Voltage measurement:

Range: (-30~30)V

Resolution: 0.1μV

Accuracy: ±(0.01%RD+0.003%FS)

Pressure switch-off measurement: Voltage range 3V~24V (if with electric)

Temperature measurement:

Range: 0~50°C

Accuracy: ±1°C

24V DC output: 24V±0.5V, 50mA (max)

Operation environment:

Work temperature: 0~50°C

Humidity: (0~90%) RH (non-condensing)

Atmospheric pressure: 0.86~1.01bar/(86~101)kPa

Data interface: RS232

Power supply: Rechargeable lithium battery, power adapter-powered

Dimension: Header Ø120×45mm, overall length 190mm

Weight: 0.70kg

STANDARD DELIVERY:

Main unit: 1 pc

Power adapter: 1 pc

Current and voltage test line: 1 set
