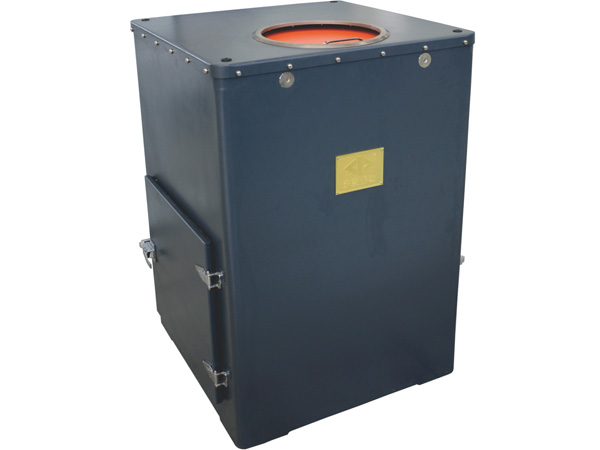

Dongling SY30-03 Centrifugal Constant Acceleration Tester (30000 rpm, 5000-800000 m/s2)

Max. Load (kg): 0.03

Position: 10

Acceleration (m/s2): 5000-800000

Specimen-Installed Radius (mm): 80-100

Turning Radius (mm): 110

Max. Rotating Speed (r/min): 30000

Start Time (min): ≤5

Stop Time (min): ≤5

Continuous Working Time (min): 5

Power Consumption (kVA): 6.5

Dimension (L×W×H: mm): 900x900x1000

Weight (kg): 1500

Control Cabinet (mm): Single cabinet 555 x 1000 x 1300; Double cabinet 1200 x 1200 x 1380

Power Supply: Three-phase 380V, 50/60Hz

Measure and Control System: IPC control

Standard: GJB150 GJB360 GB/T2423 MIL-STD-810F IEC68-2-7

Working Environment

Temperature range: 0 ~ 40°C

Humidity range: ≤80% (non-condensing)
