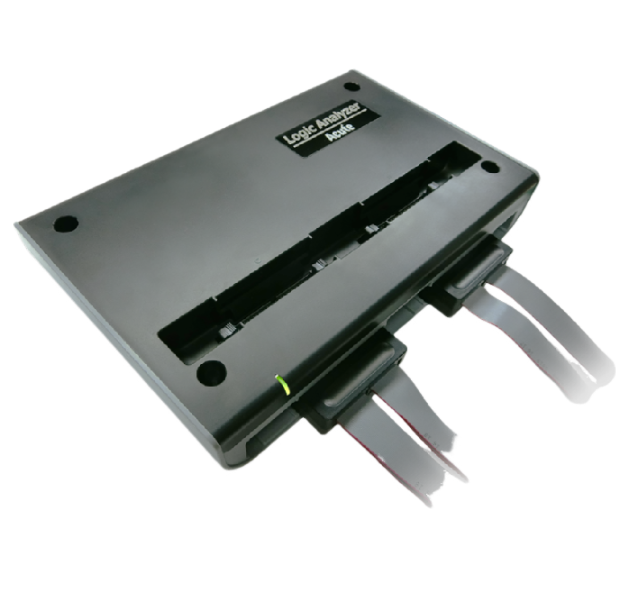

Acute LA4136B 로직 분석기 (136 channels ; 400MHz; 32Gb)

Power Source: 12V Power adapter

Static Power Consumption: 30W

Max Power Consumption: 75W

Hardware Interface: USB 3.0

Timing Analysis (Asynchronous，Max. Sample Rate): 4GHz

State Clock Rate (Synchronous，External Clock): 400MHz

Storage: Conventional Timing, Transitional Timing

Channels: 136

Total Memory: 32Gb

Timing Analysis: Available Chs (Conventional / Transitional Timing) - Memory per Ch

4GHz Timing [Available Chs] - Memory per Ch: [16 / 16]-2Gb

2GHz Timing [Available Chs] - Memory per Ch: [32 / 32]-1Gb

1GHz Timing [Available Chs] - Memory per Ch: [64 / 64]-500Mb

500MHz Timing [Available Chs] - Memory per Ch: [128 / 128]-250Mb

250MHz Timing [Available Chs] - Memory per Ch: [128 / 128]-250Mb

Channel to channel skew: 250 ps

Input channels: N/A

Input impedance: ~ 55KΩ || <2pF to 1Vdc

Max. (Non-destructive): ±40V

Input operation: ±15V

Input sensitivity: ~300mV

Threshold group: N/A

Threshold range: ±15V

Threshold resolution: 10mV

Threshold accuracy: ±100mV + 5%* Vth

Trigger resolution: 250 ps

Trigger types: Channel, Pattern, Single / Multi Level, Parallel Clause, Width, Time-out, External

Protocol Trigger:

BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eMMC 4.5, eSPI, HID over I2C, I2C, I2S, LIN2.2, LPC, MDIO, MII, Mini/Micro LED, MIPI I3C 1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, NAND Flash, PMBus, Profibus, PWM, RGMII, RMII, SD 3.0 (SDIO 2.0), SENT, Serial Flash (SPI NAND), SMBus, SPI, SVI2, SVID, UART (RS232), USB PD 3, USB1.1

Protocol Analyzer:

BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eSPI, HID over I2C, I2C, I2S, LIN2.2, MDIO, MII, MIPI I3C 1.1, MIPI RFFE 3, Modbus, PMBus, Profibus, PWM, RGMII, RMII, SMBus, SPI, SVID, UART (RS232), USB PD 3, USB1.1
