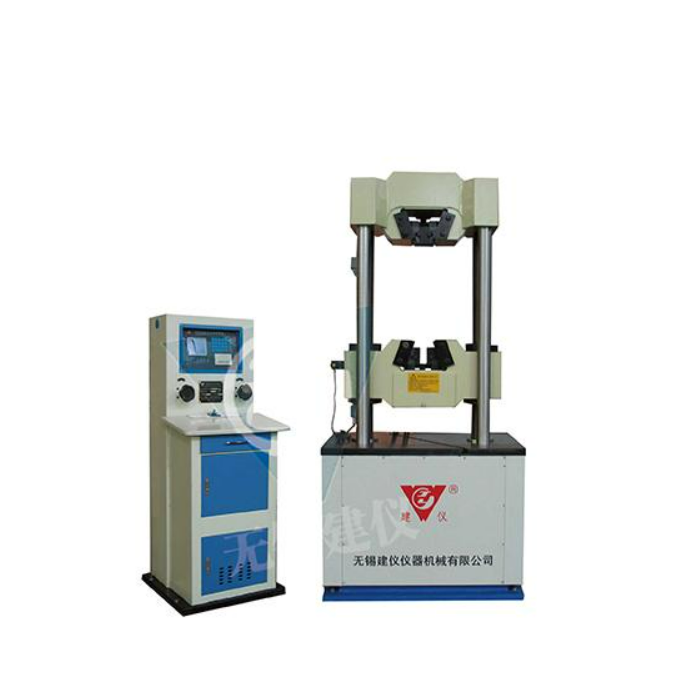

Wuxi WEW-50A 万能試験機 (50kN)
生産者: Wuxi Model: WEW-50A 起源: China - 連絡先
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24）62923267
Max testing force: 50kN
Range of measurement: 1-50kN
Test force indicator accuracy: ±1%
Displacement indicator accuracy: ±1%
Maximum distance between upper and lower pressure plates (including piston stroke): 540mm
The distance between the column: 340mm
Piston stroke: 150mm
The circle sample holds the diameter: φ6～φ22mm
Flat sample holder diameter: 0-10mm
Upper pressure plate size: Φ100mm
Lower pressure plate size: Φ100mm
Maximum distance between bending rollers: 215mm
Power supply: 380V 50Hz 2.2kW
Overall dimension: 650×500×1894mm
Measurement system size: 660×600×1520mm
Suttle: 1650kg
WEW series on A universal testing machine is mainly used for metal material tensile, compression, shear and bending test, also can do concrete, brick, stone and other non-metallic materials compression test. It conforms to GB/ t2611-2007, GB/ t16491-2008, GB/ t16826-2008, meet GB/T228.1-2010, GB/ t232-2010.
