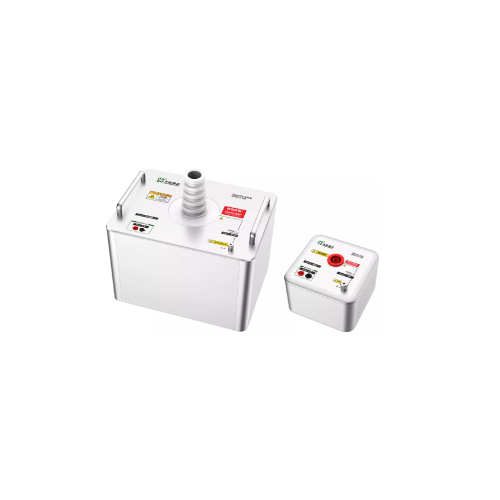

Tunkia TH0170 高精度 DC 高電圧分圧器 (1 kV)

- Voltage Measurement

Nominal input voltage ( kV ): 1

Maximum input voltage ( kV ): 1.1

Nominal output voltage ( V ): 10

Proportional uncertainty ( k=2, ppm ): 30

- Auxiliary Performance

Input resistance ( MΩ ): 10

Output resistance ( kΩ ): 100

Temperature coefficient ( ppm/K ): 2

Voltage influence factor ( ppb/V ): 10

- General Specifications

Power supply: ——

Warm up time: 30 minutes

Temperature performance: Operating temperature: 5°C ~ 40°C; Storage temperature: -10°C to 55°C

Note: When stored in a harsh temperature environment, the resistance value may change temporarily and be restored to the original resistance value within the following 30 days.

Humidity performance:

Working humidity :(30%-70%) R·H, no condensation

Storage humidity :(20%-80%) R·H, no condensation

Connection mode: The input connection adopts high pressure socket, and the output connection adopts a pair of ф 4 mm female socket.

Size (mm) (W * D * H) (excluding terminals): 180x180x120

Weight ( kg ): 2
