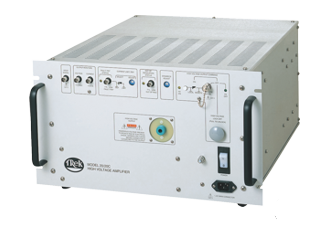

Trek 20 / 20C-H 高電圧パワーアンプ（200 / 230V）

Line voltage: 200/230V

Output Voltage Range: 0 to ±20 kV DC or peak AC

Output Current Range: 0 to ±20 mA DC peak AC

Input Voltage Range: 0 to ±10 V DC or peak AC

Input Impedance: 25 kΩ, nominal

DC Voltage Gain: 2000 V/V

DC Voltage Gain Accuracy

Better than 0.1% of full scale

Offset Voltage: Less than ± 2 V

Output Noise: Less than 1.5 V rms*

Slew Rate (10% to 90%, typical): Greater than 450 V/µs

Large Signal Bandwidth (-3 dB): DC to greater than 7.5 kHz

Large Signal Bandwidth (1% distortion): DC to greater than 3.75 kHz

Small Signal Bandwidth (-3dB): DC to greater than 20 kHz

Dimensions: 279 mm H x 482 mm W 654 mm D

Weight: 24,9 kg
