THORLABS CS126CU Kiralux® CMOS小型サイエンティフィックカメラ (Passively Cooled, Color CMOS)

Sensor Type: Color CMOS

Effective Number of Pixels: 4096 x 3000 (H x V)

Imaging Area: 14.131 mm x 10.350 mm (H x V)

Pixel Size: 3.45 µm x 3.45 µm

Optical Format(a): 1.1" (17.5 mm Diagonal)

Max Frame Rate: 21.7 fps (Full Sensor)

ADC(b) Resolution: 12 Bits

Sensor Shutter Type: Global

Read Noise: <2.5 e- RMS

Dark Current(c): N/A

Full Well Capacity: ≥10 650 e-

Exposure Time: 0.028 ms to 14700.9 ms in ~0.014 ms Increments

Vertical and Horizontal Digital Binning(d): 1 x 1 to 16 x 16

Region of Interest (ROI): 260 x 4 Pixels(e) to 4096 x 3000 Pixels, Rectangular

Dynamic Range: Up to 71 dB

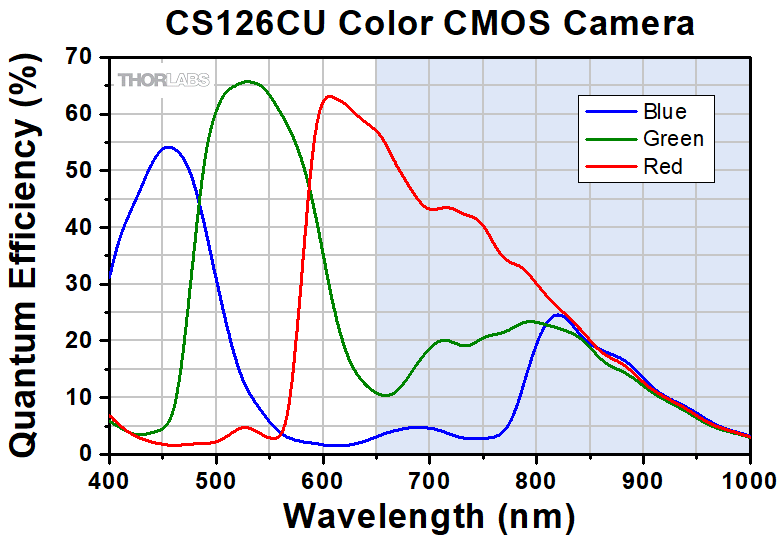

Peak Quantum Efficiency: See Responsivity Plot

Removable Optic: IR Blocking Filter

USB Power Consumption: 3.92 W @ 21.7 fps (Full Sensor ROI)

Ambient Operating Temperature: 10°C to 40°C (Non-Condensing)

Storage Temperature: 0 °C to 55 °C

(a) Click the links for a visual comparison of all the sensor sizes.

(b) ADC = Analog-to-Digital Converter

(c) Dark current is measured with an ROI of 256 x 256 located at the center of the sensor. Dark current will be higher at the periphery due to glow from integrated active circuitry adjacent to the pixel array. Variation from camera to camera should be expected due to sensor manufacturing variability. All measurements were performed in an environmental chamber at 20 °C ambient.

(d) For color cameras, binning greater than 1 x 1 is only available when the camera is operating in unprocessed mode (monochrome).

(e) When Binning at 1 x 1
