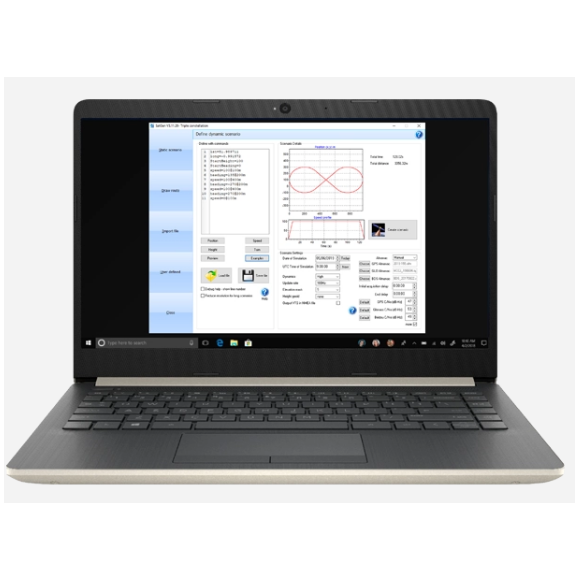

LABSAT SatGen SatGen Software (SatGen v3 L1 band Single constellation)

Technical Specifications

Constellation all variants: GPS/Galileo/GLONASS/BeiDou/NavIC

Data format: IF, I, Q, I&Q

Quantisation: 1 bit, 2-bit, 3-bit

File format: .bin / .ls2 / .ls3 / .LS3W

File Size/ Duration: Unlimited/ 7 days

One hour scenario data size:

LabSat: 7 GB

LabSat 2 & RT: 14.4 GB

LabSat 3: 14.4 GB

LabSat 3 Wideband: 169 GB

Almanac file format: .alm / .agl / .xml

NMEA Input File Format: $GGA

Operating System: Win 7 64-bit, Win 8 64-bit, Win 10 64-bit

Minimum recommended PC requirements

SatGen v3 Single, Dual & Triple constellation:

 Single constellation: Min 4GB RAM

Dual and Triple constellation: Min 8GBRAM

Real-Time:

Single constellation: up to 16 satellites.

4-core Intel i7 3.8 GHz Turbo frequency

Dual constellation: up to 28 satellites.

8-core Intel i7 Extreme 3.5GHz Turbo frequency

10-core Intel Xeon 2.8GHz Nominal frequency

SatGen v3 Wideband:

Minimum RAM specification: 16GB

4-core Intel i7 3.8 GHz Turbo frequency
