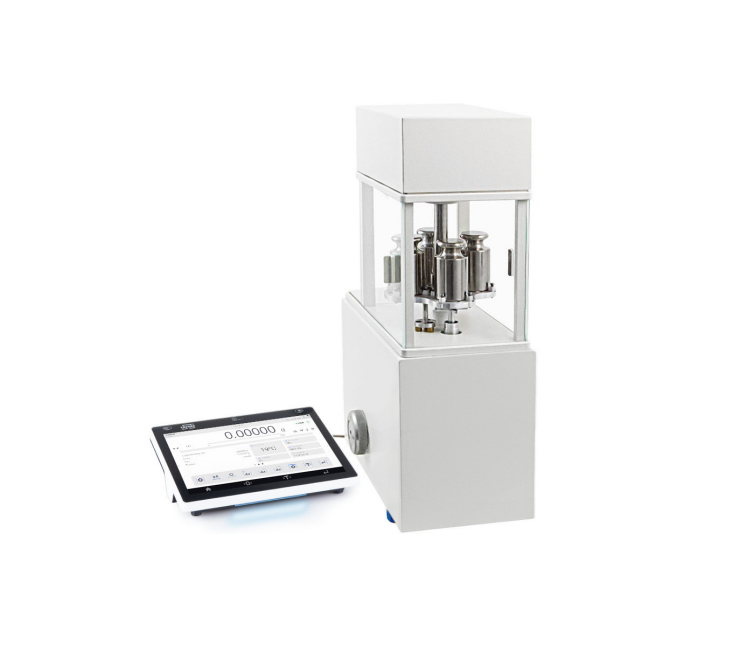

RADWAG AK-4.1001.5Y 自動質量比較器 (1.02 kg ; 0.001 mg)

Metrological parameters:

E1 Calibration Range : 100 g – 1 kg

E2 Calibration Range : 100 g – 1 kg

F1 Calibration Range : 100 g – 1 kg

F2 Calibration Range : 100 g – 1 kg

Maximum capacity [Max] : 1.02 kg

Readability [d]: 0.001 mg

Standard repeatability [5% Max] : 1.7 µg

Standard repeatability [Max] : 2 µg

Permissible repeatability : 3.5 µg

Eccentricity (tested load) : 0 mg

Electric compensation range : 1 – 10 g

Stabilization time : 30 s

Adjustment : external

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions: ø50 mm

Weighing device dimensions : 385×215×600 mm

Controling device dimensions:  249×170×72 mm

Anti-draft chamber dimensions : 560×340×665 mm

Packaging dimensions : 760×860×560 mm

Net weight : 26 kg

Gross weight : 42 kg

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet,Wi-Fi, Hotspot

Electrical parameters:

Power supply : 100 – 240 V AC 50/60 Hz

Environmental conditions:

Operating temperature:  +15 – +30 °C

Operating temperature change rate : ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±5% / 12 h (3% / 4 h)
