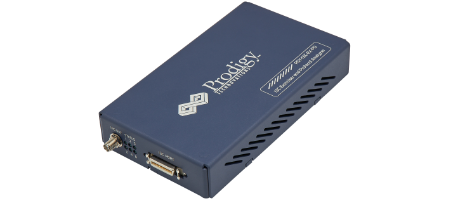

Prodigy PGY-PMBus-EX-PD PMBus プロトコル アナライザーおよびエクササイザー

Exerciser:

Configurable: 1 Master + 3 Slaves

PMBus Traffic Generation: Custom PMBus traffic generation Simulate real-world network traffic

SCL Frequency: 100KHz to 1MHz

Voltage Drive Level: 1V to 3.3V at steps of 100mV

SCL Duty Cycle variation: User-Defined

SCL & SDA Delay: User-Defined

Error Injection : ACK/NACK Errors

API Support: Support for Automation of operation using Python or C++

Protocol Analysis:

Supports : PMBus protocol decode

Protocol Views:

+ Timing Diagram View

+ Protocol Listing View

+ Bus-Diagram to display Protocol packets with timing diagram plot

Protocol Trigger

+ Auto (Trigger on any packet).

+ Simple (Trigger on user-defined PMBus packet).

+ Advanced (Multistate & Multilevel trigger with timer capability).

Protocol Error Report:  ACK/NACK Errors;  Non-standard Frames

Capture Duration: Continuous streaming Protocol; Data to host HDD/SSD

Host Connectivity : USB 3.0/2.0 interface
