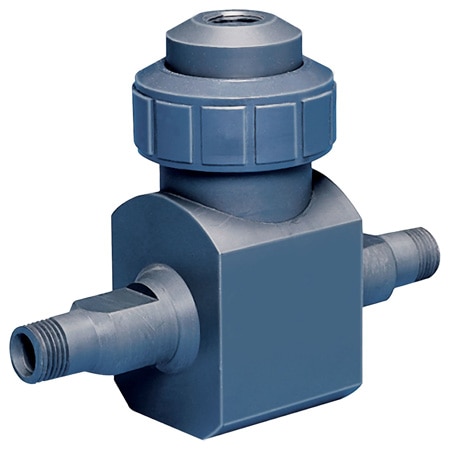

OMEGA FV-231 Plastic Vortex Flow Meter for Corrosive Liquids (0.6 GPM, 1 1/2 in, NPT Male, IP66, NEMA Type 4X)

Weight: 1.5 lb

Accuracy: ± 1 %

Supply Power: 8 to 28 Vdc

Accuracy Note: ±1% of full scale, 4 to 20 mA or ±2% of full scale, frequency pulse (“-P” option)

Output Detail: 4 to 20 mA or frequency pulse (source-sink driver; 1A source/ 1.5A sink; typical output resistance 10 Ω)

Pressure Type: Gauge

Repeatability: ±0.25%

Response Time: 2 sec

Turndown Ratio: 0.33402777777778

Mounting Plates: N/A

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP66, NEMA Type 4X

Materials, Wetted: CPVC

Enclosure Material: PVDF

Pressure Drop, Max: 20 psi

Response Time Note: 2 seconds minimum, step change in flow

Media Compatibility: Corrosive Liquids

Operating Pressure, Max: 150 psi

Process Connection Size: 1 1/2 in

Process Connection Type: NPT Male

Volumetric Flow Rate, Max: 5 GPM

Volumetric Flow Rate, Min: 0.6 GPM

Operating Temperature, Max: 66 °C

Operating Temperature, Min: 0 °C
